The role of computational methods in cardiovascular medicine: a narrative review

Introduction

This narrative review aims at discussing the benefits and challenges that the integration of computational methods and clinical observations provides to the investigation of cardiac and vascular pathophysiology. Specifically, we illustrate how innovative computational methodologies can have an impact on clinical practice, both in the present day and in the near future. The discussion is enriched with some specific applications addressed by our group in collaboration with hospital centers in our area empowered by our integrated virtual model of the heart.

This latter is a comprehensive computational model of the human heart, capable of describing all the main physiological processes (electrophysiology, contractile force generation, passive and active mechanics, blood dynamics, valve dynamics, myocardial perfusion) in a multi-physics integrated framework, and coupling them to the rest of the cardiovascular system. Exploiting both the descriptive and predictive power of computational models, we managed to reproduce virtually both the physiological heart function and the effects of some pathological conditions, by which we could address clinical questions of interest.

Background

Diagnostic tools, such as the electrocardiogram (ECG), cardiac and arterial echocolordoppler, coronary computed tomography (CT), magnetic resonance imaging (MRI), provide important measures of several specific features of the cardiac function (1-5). Various measurements made with different modalities need to be combined to provide a more comprehensive view, albeit still partial. Physical knowledge may enable these gaps to be filled, through models that can represent the behavior and dynamics of quantities of interest, such as the transmembrane potential, the blood velocity and pressure, or cardiac muscle displacement (6). This has become particularly relevant in recent years, due to the increasingly complex and rich data available from diagnostic tests and to the need to exploit such data in the most effective way. Indeed, also regulators encourage computational trials in the development of treatment protocols and in the design of medical devices (7-9), thanks to: (I) the reduced costs of numerical simulations with respect to those of extensive experimental campaigns and (II) the non-invasiveness of computational models, which is particularly important when children medical care and treatment are entailed.

Fostered by this interest, several research groups at the intersection of the medical, bioengineering, mathematical and scientific computing fields have been developing computational methods and procedures for the in-silico reproduction of the cardiovascular system and its analysis. In the last decade, detailed models have been introduced for the description of specific components of the heart function, such as electrophysiology (10-19), ion dynamics in the cardiomyocytes (20-23), contraction and mechanical behavior of the cardiac tissue (24-34), blood flow (35-48), valve dynamics (49-66), and cardiac perfusion (67-73). Special efforts have been made to integrate all these components into a single computational model. A first example of multi-physics computational heart model was proposed by the UT-Heart team (74) (ut-heart.com) with clinical investigations, e.g., in double-outlet right ventricle (75) and cardiac resynchronization therapy (CRT) (76). Very few other groups have succeeded in introducing models that couple the electromechanics of the cardiac muscle with the 3D distribution of blood flow and pressure, focusing, e.g., on the systolic phase (77), on the assessment of a left ventricular assist device (LVAD) (78), or on the computational efficiency of the solution of the equations pertaining to the model (79).

Rationale and knowledge gap

In our group we have created an integrated simulator of the cardiac function, encompassing the several physical processes occurring in the heart, from cell-scale myocyte force generation (80) to organ-scale motion and blood flow (81,82), from the microseconds of electrical pulse propagation to the timespan of a whole heartbeat (www.iheart.polimi.it). This simulator was then used to address specific questions arising at different stages of the clinical practice: in the investigation of the physiological behavior of a normal heart, in the diagnostics of pathologies and the assessment of their severity, in decision making and treatment planning, and in the prediction of the insurgence of complications after a device implantation.

The main features of our integrated cardiocirculatory model are listed below:

• A detailed description of the physical processes entailed in the cardiac function, by means of state-of-the-art computational models of electrophysiology, force generation, myocardium mechanics, blood flow dynamics, valve dynamics, and myocardial perfusion;
• The merging of the abovementioned models into a single integrated model accounting for the strict coupling between all the functions of the heart, using mathematically rigorous coupling strategies;
• An accurate resolution of the abovementioned models, employing state-of-the-art numerical methods, implemented in efficient software libraries and often validated against actual clinical data;
• The analysis of diagnostic imaging and other clinical data and the extraction of anatomical and functional information that is integrated into our computational models, by means of innovative image processing tools.

Objective

This narrative review aims to demonstrate the advantages and challenges of using computational models in the clinical diagnosis and treatment of the cardiovascular system. Our discussion is accompanied by relevant clinical examples investigated by means of our simulator.

The characteristics of computational models can be exploited in two directions. First, their descriptive power can be used for an in-depth investigation of the physiological processes entailed in the cardiac function and its pathologies, as well as to uncover relations between clinical indicators, or even to bring forth new quantities of interest to be investigated. Second, the predictive power of physics-based models can be exploited in scenario analysis to stratify patients, compare different treatment strategies, or to anticipate the development of future pathological conditions.

The computational models that we discuss were mainly developed on data coming from adult human heart observations and measurements, but their high flexibility allows them to be employed also in the pediatric context. Indeed, the same physical laws that we included in our models govern the blood flow, the electric signal propagation and the contraction of the heart in the general sense. An example of this wide applicability will be discussed in the case of an investigation of cardiovascular effect of coronavirus disease 2019 (COVID-19) on children (see Part V in “Illustrative applications” and the following discussion). We present this article in accordance with the Narrative Review reporting checklist (available at https://tp.amegroups.com/article/view/10.21037/tp-23-184/rc).

Methods

We report clinical applications of our computational methods and discuss the corresponding results with references to other computational studies in the main journals of the bioengineering and numerical modeling literature, in the last decade. A more structured description of the search strategy is provided in Table 1.

Illustrative applications

In what follows we briefly discuss some studies as paradigmatic examples of clinical applications of our computational models.

• Atrial fibrillation (AF), the arrhythmia with the highest worldwide incidence, is an electrical dysfunction characterized by a progression of episodes with irregular rhythm and, in most cases, high heart rate and reduced contraction. These expose the patient to numerous complications, such as thrombo-embolic risk or heart failure. AF represents a very challenging pathology, resulting from dysfunctionalities of ionic species at the cellular level combined with signal conduction abnormalities in myocardial tissue architecture. Moreover, there is not yet a complete picture of its etiopathology and, consequently, the optimal treatments tailored for the individual patient remains an open challenge. In this context, computational models along with advanced electroanatomical mapping systems and clinical images with increasing high resolution are rapidly advancing research in this area. Specifically, computational models have the ability to simulate the induction and sustainment of AF episodes (18) (Figure 1) and to provide a framework for linking arrhythmic propensity to biomarkers computed from electroanatomical maps (19,85,86) or imaging (87,88).
• Another pathological condition of the cardiac electrophysiological function is the left bundle branch block (LBBB), which induces an asynchronous contraction of the ventricles, possibly impairing the pumping function of the heart. To assess the severity of the condition and to plan the device implantation for CRT, invasive measures of the activation map are currently performed on the patients, by means of catheterization of the ventricles and the epicardial coronary veins. In studies of Stella et al. and Vergara et al. (89,90), a computational model was employed with the aim of reducing the invasiveness of such measurements. The left ventricle geometry of different patients was reconstructed from MRI, and the personalization of the electrophysiological model was based only on the activation map measures acquired on the septum and in the proximal portion of the epicardial veins. Distal measures in the veins were used only for cross-validation. The computational model effectively predicted the region of latest activation, as well as the latest activation time (see Figure 2).

Figure 1 Numerical prediction of arrhythmogenic propensity in atria (18) and ventricles (83,84): numerical simulations on patient-specific geometries allow to accurately identify re-entrant distributions of transmembrane potential characterizing atrial fibrillation (above) and ventricular tachycardia (below). Credits: S. Pagani.

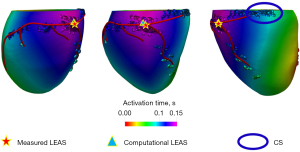

Figure 2 Computed (continuous map) and measured activation times. The measured and computational LEAS, and the calibrating data at CS are highlighted. LEAS, latest electrical activation segment; CS, coronary sinus. Credits: S. Stella.

We investigated the effects of hypertrophic cardiomyopathy (HCM) on the blood flow, in patient-specific scenarios, to assess the severity of the HCM-induced obstruction and provide clinical indications for its treatment (45,60). Starting from kinetic MRI (cine-MRI) data, we developed an image-processing procedure to reconstruct the anatomy and motion of the left ventricle of HCM patients (see Figure 3). In the case of systolic anterior motion (SAM) of the mitral valve, we also reconstructed the shape and displacement of the anterior leaflet of the valve. Then, we simulated the blood flow induced by the patient-specific anomalous heart contraction, evaluated the pressure and stress exerted by the flow on the endocardium, described the turbulent structures developing in the aorta (see Figure 4), and proposed a synthetic indicator to identify the most suitable region for surgical intervention by septal myectomy, which is the mostly advised treatment for obstructive HCM according to clinical guidelines (91,92).

Figure 3 General image-based computational procedure for patient-specific simulations. From diagnostic imaging data (A), segmentation yields anatomical surfaces (B) possibly for different times of the heartbeat. Registration algorithms are used to reconstruct displacement fields (C) with respect to a reference configuration. A computational mesh of the patient’s anatomy is generated (D) and used to perform numerical simulations (streamlines of blood flow in left ventricle and aorta) (E). Credits: M. Fedele, I. Fumagalli.

Figure 4 Image-based numerical simulation of patient-specific blood flow in the left ventricle and ascending aorta of a patient with SAM of the MV: pathologically strong aortic jet flow (left) and related vortical structures obtained by Q-criterion at systolic peak (right). SAM, systolic anterior motion; MV, mitral valve. Credits: I. Fumagalli.

Another image-based computational model for hemodynamics was developed (93) for the investigation on transcatheter aortic valve implantation (TAVI) and the occurrence of structural valve degeneration (SVD) years after the intervention. Based only on pre-implantation CT acquisitions, we reconstructed the patient-specific geometries of the aorta for different patients (three that encountered SVD and two that did not), virtually implanted the prosthetic device, and simulated numerically the blood flow and its interaction with the prosthesis and the native valvular tissue, in a post-implantation scenario. This investigation unveiled preliminary correlations between the onset of SVD and the distribution of flow-induced wall shear stress (WSS) on the aortic wall (see Figure 5).

Figure 5 WSS on the aortic wall of patients with TAVI (93): WSS distribution at systolic peak (left) and time evolution of average WSS in the orange area (right). High intensity and long persistence of WSS are predictive indicators of SVD. WSS, wall shear stress; TAVI, transcatheter aortic valve implantation; SVD, structural valve degeneration. Credits: R. Polidori, F. Renzi.

The effects of COVID-19 on the cardiovascular system of pediatric patients were investigated (94), based on a lumped-parameter model of the whole system developed (95). Patient-specific models of both asymptomatic and symptomatic children were obtained by calibration with measured clinical data. A correlation was found between myocardial compromise and the severity of the COVID-19 infection (see Figure 6), as observed also in clinical studies (96,97).

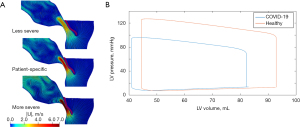

Figure 6 Virtual scenario analyses: (A) 2D slices of the peak-systole blood velocity field in the left ventricle outflow tract of a patient with different levels of SAM (59); (B) pressure-volume loops of the LV of a healthy child and of a child with COVID-19 infection (94). SAM, systolic anterior motion; LV, left ventricle. Credits: L. Ruffino, A. Santoro, S. Sparvieri.

The computational models for the cardiovascular system developed in our group were described (98). Most of the simulations based on such models have been carried out in a high-performance computing environment, using the finite element software library life^x (https://lifex.gitlab.io/) (99-102). For the integration of clinical imaging data into the computational models, specific image- and surface-processing procedures have been devised and implemented based on VMTK (103,104), elastix (elastix.lumc.nl) (105), SimpleITK (simpleitk.org), MITK (www.mitk.org) (106,107).

The role of computational models in diagnostics and treatment planning

In our group, we developed a fully integrated multi-physics computational model of the heart function, encompassing the numerical modeling of several physiological processes, the development of computational tools for the analysis of clinical and imaging data, and the integration of such data in the model, for patient-specific analysis. The following discussion shows how the medical research and the clinical practice can benefit from computational modeling, exploiting its power at different levels: in the analysis of clinical data (see section “Analysis of patient data and clinical indicators”), in the quantitative assessment of clinical indicators and the uncovering of relations between quantities that are not directly measurable by diagnostic tools (see section “Investigation of physical processes underlying the heart function”), and in the prediction of long-term effects of treatments or development of pathologies (see section “Towards exploiting the predictive power of computational approaches”).

Analysis of patient data and clinical indicators

The assessment of the heart function in clinical practice entails the acquisition of diverse and possibly large datasets such as, e.g., diagnostic imaging data, time-dependent signals like ECG, pressure measurements, and the patient’s medical history. To assist the analysis and evaluation of a pathological condition, quantitative indicators and biomarkers are extracted from the patient’s data. These indicators, based on approved protocols and the physician’s experience, quantify the severity of a condition or the propensity to develop a certain pathology.

The main source of information about heart function is diagnostic imaging, acquired by CT, MRI or Doppler echocardiography. Indeed, several geometric measurements are used to assess the function of the heart—such as the stroke volume, the orifice area of valves, the diameters of the ventricles, or the thickness of the cardiac walls—and their deviation from physiological ranges is an important indicator of pathological states. Several reconstruction procedures have been developed to extract geometric and functional information from the data, either to create representative virtual models of the normal heart (108-110) or to develop a digital twin of a pathological heart in patient-specific conditions (45,83,84,111). In general, these procedures entail segmentation and registration algorithms, as shown in Figure 3. Segmentation refers to the reconstruction of surfaces—such as vessel or heart chamber walls (see Figure 3B)—from grey-scale images, and they rely on computational methods such as level-set methods based on partial differential equations combined with the marching-cubes algorithm (112). Registration, instead, aims to reconstruct the motion of such surfaces (see Figure 3C), by means of shape optimization and other optimization algorithms applied to images corresponding to different instants of the heartbeat (such as cine-MRI, multiple-time CT scans, or time-dependent echocardiography): see, e.g., (60,113).

More recently, machine-learning algorithms have also been employed for these reconstruction goals: the introduction of these algorithms aims at reducing the need for human intervention in the reconstruction procedure, by relying almost completely on data, and their reliability is based on the large number of data employed for their training (114,115).

In electrophysiology, in addition to anatomical data, electrical biomarkers guide the definition of ablation targets, which are those regions that are electrically isolated to avoid the development of new arrhythmic episodes. These indicators are calculated from electro-anatomical data, which consists of the set of intracardiac electrograms (EGMs) and the location of their measurement. These data are collected with mapping or diagnostic catheters (like, e.g., the coronary sinus catheter) equipped with multiple electrodes. Mapping systems process EGMs to reconstruct 3D maps depicting wavefront propagation in the cardiac chamber or areas of abnormal electrical activity (such as low voltage areas) (116).

Numerical methods improve the post-processing of electro-anatomical data by extracting even more representative indicators of arrhythmic propensity: slow conduction corridors or high rotational areas (pivot points). In the context of AF, these quantitative biomarkers, in addition to allowing a better stratification of patients explaining AF progression (86), are proven to affect the clinical outcome of an ablation procedure (117) (see Part I in section “Illustrative applications”). In the context of ventricular tachycardia, structural abnormalities can be distinguished from functional ones thanks to the quantitative comparison of indicators computed from electroanatomical maps in sinus rhythm and tachycardia (118). This highlights the importance of having computational tools that can combine information acquired using different modalities (e.g., imaging and catheter) or surrogate the lack of information with physics-based differential models.

Investigation of physical processes underlying the heart function

One of the main goals of medical research is to identify correlations between different physio-pathological processes and between different clinical indicators and measurable quantities, to explain the mechanisms of normal physiology, to investigate the causes and characteristics of pathologies, and to devise effective treatments. In this endeavor, important obstacles are represented by the uncertainty in clinical data, the difficulty of integrating information coming from different acquisition sources, and the intrinsic impossibility of analyzing different scenarios of pathology evolution or treatments.

Computational models can substantially address these issues through their encoded physics-based knowledge. Moreover, they can integrate subject-specific anatomical and functional data, as discussed in section “Analysis of patient data and clinical indicators”.

In this framework, computational investigation can be:

• Complementary to diagnostics and clinical analysis, since:
  • It can quantify quantities of interest and biomarkers with a level of detail as high as needed;
  • It can fill up missing data in the measurements (e.g., the time evolution of quantities measured only in few time instants) or even give access to quantities that are not measurable in vivo;
• Supplementary to clinical investigation, since it allows the analysis of different patient-specific scenarios associated with different stages of a pathology or with the application of different treatments.

These points will be discussed in the following, by referring to the clinical applications described in section “Illustrative applications”.

In terms of level of detail (point I-i), computational models can reach the scale of a single cell in representing contractile force generation in cardiac myocytes (80) or investigating slow conduction regions in the myocardium at the level of the fiber scale (19) or describing the generation of small-scale vortices and turbulence in the blood flow (45,48,119): examples of detailed vortical structures of flow jets in pathological conditions (HCM and mitral valve regurgitation), obtained by image-based computational fluid dynamics, are shown in Figures 4,7. Indeed, this kind of high-resolution information cannot be directly captured by standard in vivo measurements and clinical imaging. Moreover, multiscale models can describe how the abovementioned microscale effects affect the whole organ function, thus extending even further the relevance of the results.

Figure 7 Systolic blood flow in a left heart with mitral valve regurgitation (113): instant of maximum regurgitant flow. Blood streamlines (colored by velocity magnitude) and WSS on the mitral valve leaflets due to the regurgitant jets. WSS, wall shear stress. Credits: L. Bennati.

In addition to enhancing the detail of measures of relevant clinical indicators, computational models can also provide data that are not directly measured by standard clinical measurements (point I-ii). Missing data can be of two types: they can be quantities that are in principle measurable but are not acquired to reduce the invasiveness of the diagnostic phase, or they can be quantities that are completely not measurable in vivo. An example of the first type is the acquisition of activation maps by catheterization of the epicardial veins or the interventricular septum: it was shown how the radiation exposure and the overall invasiveness of the procedure can be reduced by hinging upon an accurate numerical simulation of the electrical activity of the left ventricle (90) (cf. Part II in section “Illustrative applications”). The results of the computational model were validated against additional data in some subjects, such as the measured latest electrical activation segment (LEAS), as shown in Figure 2. In alternative, computational models combined with deep learning approaches can support the development of non-invasive reconstruction of the electrical activity in the ventricles (ECG imaging) (120).

In terms of hemodynamics, another example is represented by the lumped parameter model as the one proposed in some studies (34,38,121), which allowed to compute pressure-volume loops and the evolution of pressures and flows in the cardiovascular system with the need of only few non-invasive measurements of the systemic pressure and cardiac chamber volumes. A proper calibration of this model allowed to provide clinically relevant indications on the cardiopathies associated with COVID-19 infection in children (see Part V in section “Illustrative applications”).

Furthermore, the physical content of mathematical models can also give access to quantities that are not measurable in vivo. This is the case, for example, of the shear stress exerted by the blood flow on the ventricular (45) and aortic (93) wall or even on valve leaflets (113), as shown in Figure 7, the transmembrane electric potential in the atria (18) and ventricles (84,118), as shown in Figure 1, or the specific orientation of conduction fibers in atria (18,122). The relevance of quantifying these quantities lies in the established correlation they have with the heart function or the development of pathological conditions: e.g., fiber orientation strongly affects the overall electrical activity and contraction of the heart (123,124), and strongly oscillating values of the WSS are known to induce plaque formation in the vessels (125,126). Moreover, additional correlations can be found, that would not be directly detectable by classical clinical trials. This is the case, for example, of the correlation between TAVI structural degeneration and the flow-induced stress on the wall of the ascending aorta (cf. Part IV in section “Illustrative applications” and Figure 5), or the quantification of the intraventricular pressure gradient associated to hypertrophic obstructive cardiomyopathy (cf. Part III in section “Illustrative applications”).

A feature of computational models from which medical research and clinical practice can greatly benefit is the possibility to perform scenario analysis (point II). A common characteristic of all computational models is a separation between equations and parameters: the former describe physical processes, while the latter describe the specific settings in which such processes take place, in terms of geometry, boundary conditions, or other physical characteristics such as electrical conductivity or elastic modulus of the tissue. Acting on these parameters, one can compare different physio-pathological conditions of a single patient—such as the different severity levels of SAM analyzed in (60) (cf. Part III in section “Illustrative applications” and Figure 6A)—or else compare models representing different patients, as in the investigation (94) of COVID-19 effects on children’s cardiovascular system (cf. Part V in section “Illustrative applications” and Figure 6B) or electrical substrate characteristics (18). The strong relevance of scenario analysis lies in its non-invasiveness and relatively low cost, since it can provide new information with respect to diagnostic tests without the need for intervention or hospitalization.

All the abovementioned information that computational models provide can be used to investigate correlations between the patients anatomical and functional characteristics and the mechanisms underlying physiology and pathology.

In cardiac electrophysiology, computational models allow us to associate the biomarkers extracted from electroanatomical maps to arrhythmic propensity: simulations have shown that slow-conducting areas provide anchor points for localized reentry, sustaining an arrhythmic episode (18). This link is crucial because, in addition to explaining a possible mechanism behind the higher duration and frequency of persistent fibrillation episodes, it confirms slow-conducting areas as suitable ablation targets (see Figure 8). Furthermore, in the absence of electrical data, computational models provide a surrogate that can be used to construct patient-specific ablation strategies starting from imaging data, as done in the OPTIMA (Optimal Target Identification via Modeling of Arrhythmogenesis) approach (127).

Figure 8 Combination of quantitative post-processing of electro-anatomical maps with numerical simulations to analyze the arrhythmic propensity of a patient’s substrate and to design an optimal strategy for ablation. EA, electro-anatomical; AT, activation time; CV, conduction velocity; AF, atrial fibrillation. Credits: S. Pagani, A. Frontera.

This can then lead to the identification of predictive indicators for the onset or development of pathologies, as discussed in the next section.

Towards exploiting the predictive power of computational approaches

Hinging on the integration between patient-specific information and the fundamental physical laws governing the cardiovascular system, computational models can be used to model and predict virtual future scenarios. Indeed, based solely on the patient’s current situation, the development of a disease can be investigated for the next months or years, or else surgical treatments can be virtually applied and then compared at the pre-intervention stage.

An example of this is the investigation of TAVI degeneration described in Part IV in section “Illustrative applications”. We found preliminary predictive indicators for the onset of SVD on the basis of only pre-implantation CT scans. To make this possible, the reconstruction of patient-specific geometries was followed by the virtual implantation of the TAVI prosthesis, and a fluid-structure interaction simulation produced hemodynamics indicators in the resulting post-implantation settings. In the study, the intensity and persistence of WSS in the aorta were proved to be predictive for SVD by comparing their indication with the actual condition of the patients in follow-up exams (see Figure 5).

To further enhance the predictive power of computational models, the study of growth and remodeling of organs and living tissues, as well as of the development of pathological conditions such as plaques and aneurysms, is currently being brought forward (128-130). Adapted to reproduce specific pathological conditions, this kind of models will allow to shed more light on the development of cardiovascular diseases and to provide a more accurate environment for in-silico trials in the long term.

Conclusions

Computational cardiology combines the detailed description of physical processes provided by computational models with the patient-specific information retrievable by imaging acquisition and diagnostic data. Relying on representative applications investigated in our research group, we illustrated how computational models can positively impact diagnosis and treatment planning for several cardiovascular diseases, at different stages of clinical practice. Part of the results presented (see Part V in section “Illustrative applications” and the related discussion) regard the treatment of cardiovascular diseases in children, showing how the versatility of mathematical models allows for the translation of computational methods developed for adult patient care to the pediatric context.

In the investigative phase of diagnosis, reconstruction procedures based on segmentation and registration algorithms enable the extraction of anatomical and functional information from diagnostic images, possibly combining data acquired by different imaging techniques.

Then, such information can be enhanced in terms of physical information and space and time resolution, hinging upon a mathematical description of the physics comprised in the heart function and solving the resulting equations possibly at the level of the cell scale. In this regard, a single integrated computational model encompassing the different physical processes occurring in the heart and their coupling with the rest of the cardiovascular system is of the utmost importance, since it allows to represent and investigate the mutual effects that different components have on one another.

Moreover, exploiting the generality of this computational model, different scenarios can be generated in a completely non-invasive way, to investigate different severity levels of specific pathologies or to compare the effects of a disease on different subjects.

Finally, computational models can also predict the development of pathological conditions and the long-term effectiveness and adverse reactions of treatments: the very recent development of models for growth and remodeling showed promising results in this direction.

Overall, one of the main difficulties of using computational models in diagnosis and treatment design is related to certification. According to the current standards, validation of computational models usually requires extensive simulation campaigns and assessment on a great number of patient samples, that may require years. Moreover, there is no general definition of the requirements for a computational model or procedure to be certified, and each advancement needs an ad hoc evaluation. Nevertheless, the use of computational simulations has proved to be a powerful non-invasive tool for an effective investigation of specific pathologies and their treatments.

Acknowledgments

We acknowledge all the clinical and academic partners that have contributed to the development of the projects that we review here. I.F., S.P., C.V., L.D., A.Q. are members of the INdAM (The National Institute for Advanced Mathematics) group-GNCS “Gruppo Nazionale per il Calcolo Scientifico” (National Group for Scientific Computing).

Funding: This work was supported in part by the funding that S.P., L.D., C.V., A.Q. received from the Italian Ministry of University and Research (MIUR) within the PRIN (research projects of relevant national interest 2017 “Modeling the heart across the scales: from cardiac cells to the whole organ” Grant Registration number 2017AXL54F). I. F., S. P., L. D., A. Q. acknowledge partial support by the project “Dipartimento di Eccellenza 2023-2027”, Dipartimento di Matematica, Politecnico di Milano. S.P. has been partially supported by the INdAM-GNCS Project 2023, CUP E53C22001930001, “Mathematical models and numerical methods for computational medicine in cardiovascular diseases”.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Antonio F. Corno) for the series “The Impact of the Progresses of Knowledge and Technologies in Pediatrics” published in Translational Pediatrics. The article has undergone external peer review.

Reporting Checklist: The authors have completed the Narrative Review reporting checklist. Available at https://tp.amegroups.com/article/view/10.21037/tp-23-184/rc

Peer Review File: Available at https://tp.amegroups.com/article/view/10.21037/tp-23-184/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tp.amegroups.com/article/view/10.21037/tp-23-184/coif). The series “The Impact of the Progresses of Knowledge and Technologies in Pediatrics” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
