Imaging and pathological features of pediatric sclerosing angiomatoid nodular transformation of the spleen: a case series and hypothesis-generating perspective on non-operative management
Highlight box
Key findings
• Pediatric splenic sclerosing angiomatoid nodular transformation (SANT) is a rare, benign, non-neoplastic lesion that can be solitary or, exceptionally, coexist with other benign tumors (e.g., pancreatic calcifying fibrous tumor).
• Imaging [ultrasonography, computed tomography (CT), magnetic resonance imaging (MRI)] often shows a well‑circumscribed, solid, solitary mass; the “spoke‑wheel” enhancement pattern is characteristic but not universal (present in 2/4 cases in this series).
• MRI demonstrates higher concordance with pathological features (e.g., boundaries, hemorrhage, necrosis, hemosiderin deposition) than CT.
• In this case series, all four children underwent partial splenectomy with no recurrence during follow-up (52–132 months), confirming the benign course.
What is known and what is new?
• SANT is a benign splenic lesion in adults, characterized by female predominance and spoke-wheel enhancement on imaging. Pathologically, it features angiomatoid nodules of red pulp origin (CD31+, variably CD34+) with surrounding sclerosis. This pediatric case series provides detailed imaging–pathology correlation and shows that spoke-wheel enhancement is less consistent in children (only half of cases), so its absence should not exclude SANT. We report the first pediatric case of splenic SANT with a synchronous pancreatic calcifying fibrous tumor. Given SANT's benign nature and the risks of splenectomy (e.g., OPSI), we propose a hypothesis-generating non-operative strategy (observation after biopsy) in selected children.
• Imaging findings across four cases are compared, with MRI superior to CT in delineating SANT-specific features (fibrous scars, hemosiderin, spoke-wheel). The spoke-wheel sign is not obligatory, reducing underdiagnosis. Non-operative surveillance is discussed as hypothesis-generating, but surgical excision remains standard when malignancy cannot be excluded.
What is the implication, and what should change now?
• For a child with a well‑circumscribed, solid splenic mass and typical imaging features (including spoke‑wheel enhancement when present), SANT should be included in the differential diagnosis. A benign clinical course further supports consideration of SANT.
• In selected cases where percutaneous core‑needle biopsy confirms SANT, close follow‑up with serial imaging might be considered as a non‑operative alternative to splenectomy. This could avoid the risks of splenectomy in children, especially OPSI. Current evidence is hypothesis-generating only. Partial splenectomy remains the standard when diagnosis is uncertain, but prospective studies are urgently needed to validate non-operative approaches. Until then, clinicians should individualize decisions by weighing SANT's benign nature, biopsy availability, and surgical risks.
Introduction
Solid tumors of the spleen are rare, accounting for approximately 0.007% of all surgical and autopsy specimens (1), Sclerosing angiomatoid nodular transformation (SANT) was originally considered a variant of splenic hamartoma, but is now recognized as a benign non‑neoplastic lesion characterized by red pulpderived angiomatoid nodules surrounded by stromal hyperplasia (2-4). Most SANT cases occur in middle‑aged adults with a female predominance (female:male ≈2:1). In contrast, SANT is extremely rare in children, where splenic masses are more commonly hemangiomas or lymphomas, and SANT is often not considered in the differential diagnosis (2,5,6).
The clinical presentation of SANT is non‑specific (e.g., occasional abdominal pain or asymptomatic), and no specific biomarkers exist. Imaging [ultrasound, computed tomography (CT), and magnetic resonance imaging (MRI)] may show a solitary, well‑circumscribed mass with progressive centripetal or “spoke‑wheel” enhancement, but these findings are not uniformly present. SANT can mimic other splenic lesions (hemangioma, hamartoma, lymphoma), making preoperative diagnosis challenging. Pathological examination with immunohistochemistry (CD31+, CD34 variable, CD8−) remains the gold standard.
No large pediatric SANT series has been published; the natural history and optimal management in children remain unclear. Given the risks of splenectomy in children (e.g., overwhelming post‑splenectomy infection), non‑operative strategies such as observation or biopsy have gained interest, but their safety and feasibility are unproven in pediatrics. In this study, we report a consecutive case series of four pediatric patients with pathologically confirmed splenic SANT (one with a synchronous pancreatic calcifying fibrous tumor). We describe their clinical, imaging, and pathological features and present the imaging‑pathology correlation in a structured manner. Due to the small sample size, our conclusions are hypothesis‑generating regarding potential non‑operative management, aiming to provide a reference for clinicians and to highlight areas for future multicenter prospective studies. We present this article in accordance with the AME Case Series reporting checklist (available at https://tp.amegroups.com/article/view/10.21037/tp-2026-1-0164/rc).
Case presentation
Patients and data collection
This was a retrospective descriptive case series. Consecutive pediatric patients who underwent partial splenectomy and were pathologically diagnosed with splenic SANT at the Children’s Hospital of Nanjing Medical University between June 2014 and December 2021 were enrolled. Inclusion criteria: (I) age <18 years; (II) splenic solid mass suspected on preoperative imaging; (III) underwent partial splenectomy; (IV) postoperative pathological diagnosis of SANT (including cases with coexisting benign lesions). Exclusion criteria: (I) incomplete clinical or imaging data; (II) lack of pathological confirmation. Four male patients were included, with a mean age of 90±53 months. Complete follow‑up was available for all cases.
Imaging examination methods
All imaging examinations adhered to the principle of radiation protection optimization for children. Ultrasonography, CT, and MRI images were independently reviewed by two senior radiologists. Disagreements were resolved by consensus discussion with a third senior radiologist when necessary. The radiologists were blinded to the final pathological diagnosis (SANT vs. others) at the time of image interpretation, although they were aware that all patients had undergone splenic mass resection.
Ultrasonography: a Toshiba Aplio 500 color Doppler ultrasound diagnostic instrument with a convex array probe (frequency 3.5–5.5 MHz) was used. The patient was positioned supine or on the right side, and the probe was placed between the left ribs for oblique scanning. When necessary, a gastric window was used. Spleen size was measured by two‑dimensional ultrasound, and the echo pattern of splenic parenchyma and adjacent tissues was recorded.
CT: all children underwent non‑contrast upper abdominal CT followed by dual‑phase contrast‑enhanced CT (late arterial and venous phases). Scanning was performed on a Philips CT scanner at 120 kVp with automated mA modulation and a slice thickness of 2–3 mm. A total of 20–80 mL of iodinated contrast agent (iodine concentration 300 mgI/mL, 1.5–2 mL/kg body weight) was injected via the antecubital vein at a rate of 3 mL/s. Late arterial phase imaging was acquired at 35 seconds and venous phase at 85 seconds after injection.
MRI: performed using a Siemens Aera 3.0T scanner. The protocol included: T1-weighted imaging (in-phase and opposed‑phase), T2-weighted imaging with fat suppression, diffusion-weighted imaging (DWI; b =0 and 800 s/mm²), and multi-phase dynamic contrast-enhanced T1-weighted imaging (arterial, portal venous, equilibrium, and delayed phases). Contrast-enhanced imaging was performed using a 3D volumetric ultra-fast multi-phase dynamic sequence after intravenous injection of 0.1 mmol/kg gadolinium-based contrast agent.non-contrast scan.
Image analysis parameters: number of lesions, size (maximum diameter in three planes), shape, margin, attenuation/signal intensity (qualitatively compared to normal spleen: hypodense, isodense, or hyperdense), enhancement pattern (arterial, venous, delayed phases), and degree of enhancement (visually graded as weak, moderate, or significant). No formal statistical testing was performed due to the small sample size.
Pathological examination
Each specimen was fixed with 10% neutral formaldehyde for 24 h, embedded in conventional paraffin, and the tissue was sectionalized with 4–5 µm thickness and stained with HE. The histopathological features were observed under light microscope. At the same time, the typical histological areas of each case were selected and immunohistochemical staining of CD34, CD31, CD8, IgG, IgG4 and other related indexes were performed by En Vision two-step method. The blank control group used phosphate-buffered saline (PBS) instead of primary antibody, and the positive control group used known positive tissue sections.
Case description
Case 1
A 36‑month‑old boy presented with occasional abdominal pain. Ultrasound showed a single, well‑defined, round, hypoechoic mass (8.5 cm × 5 cm × 4 cm) in the upper spleen with sparse blood flow signal. CT: non‑contrast scan showed a large, round mass with heterogeneous internal density and indistinct boundary; late arterial phase revealed marked enhancement of solid components with well‑defined boundary; venous phase showed uniform enhancement resembling splenic parenchyma. No spoke‑wheel pattern. MRI: T1 and T2 showed no clear abnormality; DWI not distinctive. Preoperative diagnosis: splenic hemangioma. The patient underwent open partial splenectomy. Postoperative pathology: isolated SANT (mass size 6.0 cm × 5.3 cm × 5.5 cm) with CD31+, CD34−, CD8−; hemosiderin deposition (+); central scar (+); no calcification; lymphoplasmacytic infiltrate (+). Follow‑up 96 months: no recurrence or metastasis.
Case 2
A 60‑month‑old asymptomatic boy. Ultrasound: regular spleen shape, clear boundary, uneven isoechoic interior, single mass (14 cm × 9 cm × 7 cm). CT: hypodense without central calcification; spoke‑wheel, centripetal, asymptotic enhancement from arterial to venous phase. MRI: T1 low signal, T2 slightly low signal, DWI low signal with interspersed strip‑like high signal. Preoperative diagnosis: splenic hamartoma. Laparoscopic partial splenectomy. Pathology: isolated SANT (4.5 cm × 4.5 cm × 4.2 cm), CD31+/CD34+/CD8−; hemosiderin deposition (+); central scar (+); no calcification; no lymphoplasmacytic infiltrate. Follow‑up 132 months: no recurrence.
Case 3
A 156‑month‑old asymptomatic boy. Ultrasound: regular shape, clear boundary, uneven internal hypoechoic mass (7 cm × 7 cm × 6 cm). CT: hypodense without central calcification; spoke‑wheel enhancement. MRI: no clear signal abnormality. Preoperative diagnosis: splenic hemangioma. Laparoscopic partial splenectomy. Pathology: isolated SANT (5.5 cm × 5.1 cm × 5.0 cm), CD31+/CD34+/CD8−; hemosiderin deposition (+); no central scar; no calcification; no lymphoplasmacytic infiltrate. Follow‑up 108 months: no recurrence.
Case 4
A 108‑month‑old boy with limb weakness. Ultrasound: irregular spleen shape, unclear boundary, non‑uniform hypoechoic internal echo; multiple irregular hypoechoic masses in pancreatic body/tail with calcification. CT: mixed density with scattered calcifications in spleen; pancreatic tail mass with marked calcification. No spoke‑wheel enhancement. MRI: T1 low signal in phase, equal signal in reverse phase, low signal in lipid phase, slightly high signal in water phase; T2 heterogeneous slightly low signal; DWI low signal with interspersed strip‑like high signal; after contrast, splenic lesions showed significant heterogeneous multinodular enhancement, with a low‑signal radiating wheel pattern in the larger central nodule. The patient underwent partial splenectomy plus resection of the pancreatic tail tumor. Pathology: splenic SANT (11.4 cm × 10.5 cm × 6.2 cm) with CD31+/CD34+/CD8−; hemosiderin deposition (+); calcification (+); central scar (−); lymphoplasmacytic infiltrate (+); and a separate pancreatic calcifying fibrous tumor (dense collagenous fibrous tissue with psammomatous calcifications and chronic inflammation). No continuity between the two lesions. Follow‑up 52 months: no recurrence or metastasis.
Summary of clinical and pathological features
Table 1: clinical characteristics of four children (gender, age, clinical picture, nodule number, tumor size, preoperative diagnosis, surgical method, postoperative diagnosis, follow‑up months).
Table 1
| Serial number | Gender | Age (months) | Clinical picture | Nodule number | Tumor size (cm) | Preoperative diagnosis | Surgical method | Postoperative diagnosis | Follow-up (months) |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Male | 36 | Occasional abdominal pain | Single | 8.5×5×4 | Splenic hemangioma | Partial splenectomy | SANT (isolated) | 96 |
| 2 | Male | 60 | No special | Single | 14×9×7 | Splenic hamartoma | Laparoscopic partial splenectomy | SANT (isolated) | 132 |
| 3 | Male | 156 | No special | Single | 7×7×6 | Splenic hemangioma | Laparoscopic partial splenectomy | SANT (isolated) | 108 |
| 4 | Male | 108 | Limbs weakness | Multiple, integrated with each other | The overall size is 11×10×7 | Splenic tumor + pancreatic tumor | Partial splenectomy + resection of pancreatic tail tumor | SANT + calcifying fibrous tumor of pancreas | 52 |
Case 4 had two synchronous benign lesions: splenic SANT (confirmed by pathology) and a separate calcifying fibrous tumor of the pancreas. The pancreatic lesion was considered incidental rather than a manifestation of SANT. SANT, sclerosing angiomatoid nodular transformation.
Table 2: comparison of pathological features (mass size, immunohistochemistry, hemosiderin deposition, calcification, central scar, lymphoplasmacytic infiltrate).
Table 2
| Serial number | Pathological features | |||||
|---|---|---|---|---|---|---|
| Mass size (cm) | Immunohistochemical | Hemosiderin deposition | Calcification | Central scar | Lymphoplasmacytic infiltrate | |
| 1 | 6.0×5.3×5.5 | CD31+/CD34−/CD8− | + | − | + | + |
| 2 | 4.5×4.5×4.2 | CD31+/CD34+/CD8− | + | − | + | − |
| 3 | 5.5×5.1×5.0 | CD31+/CD34+/CD8− | + | − | − | − |
| 4 | 11.4×10.5×6.2 | CD31+/CD34+/CD8− | + | + | − | + |
+, positive; −, negative.
Table 3: comparative analysis of imaging manifestations (ultrasonography, CT scan, CT enhancement features including spoke‑wheel pattern).
Table 3
| Imaging modality | Features | Case 1 | Case 2 | Case 3 | Case 4 |
|---|---|---|---|---|---|
| Ultrasonography | – | The spleen has regular shape, clear boundary, and uniform hypoechoic inside | The spleen has regular shape, clear boundary and uneven isoechoic interior | The spleen has regular shape, clear boundary and uneven internal hypoechoic | The spleen was irregular in shape, the boundary was not clear, the internal echo was not uniform and hypoechoic, and the tail of the pancreatic body was multiple in shape and irregular hypoechoic |
| CT scan | The density | Hypodense without central calcification | Hypodense without central calcification | Hypodense without central calcification | Mixed density, scattered in calcification; pancreatic caudal mass, marked calcification |
| The border | Not clear | Not clear | Not clear | Not clear | |
| To enhance | Morphological features | Clear boundary and lobed | Clear boundary and lobed | Clear boundary and lobed | Clear boundary and lobed |
| Strengthen the degree | Medium | Significant | Medium | Medium | |
| Enhancement pattern | Non spoke‑wheel centrality | Radial wheel, asymptotic, centripetal | Spoke‑wheel enhancement | Non spoke‑wheel enhancement | |
| MRI | |||||
| T1 | – | None | In-phase low signal, reverse signal | None | Low signal in phase, equal signal in reverse phase, low signal in lipid phase, slightly high signal in water phase |
| T2 | – | None | A slightly low signal | None | Uneven slightly low signal |
| DWI | – | None | Low signal is dominant, interval point strip high signal | None | Low signal is dominant, interval point strip high signal |
CT, computed tomography; DWI, diffusion-weighted imaging; MRI, magnetic resonance imaging.
Table 4: imaging‑pathology correlation (imaging finding, pathological correlate, example cases).
Table 4
| Imaging finding | Pathological correlate | Example case(s) |
|---|---|---|
| T2‑weighted hypointense bands/spoke‑wheel enhancement on MRI | Fibrous septa and hemosiderin deposition | Cases 2, 3 |
| Progressive centripetal enhancement on CT/MRI | Proliferation of capillaries and sinusoids within angiomatoid nodules (CD31+ endothelial cells) | Cases 1, 2, 3 |
| Calcification on CT (punctate or psammomatous) | Dystrophic calcification in sclerotic fibrous stroma | Case 4 (spleen and pancreas) |
| DWI low signal with interspersed strip‑like high signal (b =800) | Cellular angiomatoid nodules (restricted diffusion) alternating with fibrous bands (less restricted) | Cases 2, 4 |
| Well‑defined margin on contrast‑enhanced CT/MRI | Encapsulation or compression of adjacent splenic parenchyma by fibrous tissue | All cases |
| Heterogeneous echogenicity on ultrasound | Mixed composition of nodules, fibrous stroma, and hemosiderin/calcification | Cases 2, 3, 4 |
CT, computed tomography; DWI, diffusion-weighted imaging; MRI, magnetic resonance imaging; SANT, sclerosing angiomatoid nodular transformation.
Table 5: differential diagnosis of SANT [CT, MRI, fluorodeoxyglucose (FDG) positron emission tomography/computed tomography (PET/CT) features of SANT, splenic hemangioma, splenic lymphoma, splenic hamartoma, splenic lymphatic malformation].
Table 5
| Name of disease | CT | MRI | FDG PET/CT |
|---|---|---|---|
| SANT | Isolated, lobulated, well-defined mass with a distinctive “spoke‑wheel” like pattern of enhancement (peripheral → centripetal filling) (7) | T1WI isosignal (with splenic parenchyma), T2WI peripheral high signal + central low signal on T2WI, radial low signal bands visible (fibers/ferrous hemosiderin) (8,9) | FDG accumulation was weak, with a median (± standard deviation) SUVmax of 2.8±1.20 (10) |
| Splenic hemangioma | Isointense or hypointense on noncontrast scan, dynamic enhancement shows peripheral nodular enhancement → progressive homogeneous filling (11) | Equal or slightly low signal on T1WI and homogeneous high signal on T2WI (mixed signal in large lesions with cystic lesions/hemorrhage) (11) | No metabolic activity (11) |
| Splenic lymphoma | Hypodense on noncontrast scan, weak enhancement on enhancement scan, The portal venous phase is more pronounced, with a “weak enhancement sign” (11) | Low-moderate signal on T1WI, mild-moderate on T2WI (11) | Significant FDG affinity (11) |
| Splenic hamartoma | Not easily detected on noncontrast scan, isointense to adjacent splenic parenchyma, large lesions may show only contour abnormalities; early arterial enhancement in dynamic enhancement, sustained reinforcement in the delayed phase (synchronized with splenic parenchyma) (12) | T1WI usually isosignal with spleen, T2WI mildly hypersignal, possible calcification and cystic degeneration (13,14) | Lower FDG affinity (15) |
| Splenic lymphatic malformation | On CT noncontrast scan a hypodense lesion with well-defined margins may be seen as a multicompartmental cystic structure. On enhancement scans, there is usually no significant enhancement, but the cystic walls and septa may be mildly enhanced (16) | The T1WI is low signal, and the T1 signal may be elevated if there is hemorrhage or increased protein content. On T2WI, there is a multilocular high signal due to dilation of lymphatic vessels (17) | No significant FDG uptake (18) |
FDG, SUV, the extent of uptake of radiotracer (e.g., 18F-FDG) in tissues in PET/CT. SUVmax: the highest uptake value detected within a region of interest (e.g., tumor), reflecting the metabolic level of the most active portion of the lesion. SUVmax <2.0 suggests benign lesions or low metabolic activity lesions; SUVmax >3.0 suggests malignancy. CT, computed tomography; DWI, diffusion-weighted imaging; FDG, fluorodeoxyglucose; MRI, magnetic resonance imaging; PET, positron emission tomography; SANT, sclerosing angiomatoid nodular transformation; SUV, standardized uptake value; T2WI, T2-weighted imaging.
Figure 1: light microscopic images.
Figure 2: specimen of spleen.

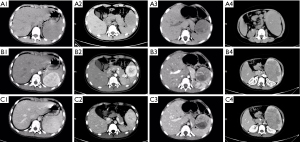

Figure 3: CT findings for Cases 1‑4.

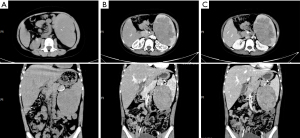

Figure 4: transverse and coronal CT images of multiple lesions (Case 4).

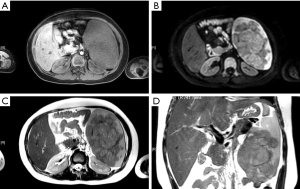

Figure 5: plain MRI of multiple lesions (Case 4).
Figure 6: MRI enhancement in multiple lesions (Case 4).
Ethics statement
All procedures performed in this study were in accordance with the ethical standards of the institutional research committee and with the Helsinki Declaration and its subsequent amendments. The study was reviewed and approved by the Ethics Committee of the Children’s Hospital of Nanjing Medical University (No. 202402005-1). Written informed consent was obtained from the parents or legal guardians of all participating children for publication of this case series and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.
Discussion
SANT is an infrequent benign lesion of the spleen, with an even lower prevalence observed in pediatric populations (3,4). The pathogenesis of SANT remains poorly understood; however, it is predominantly hypothesized to be associated with IgG4-related autoimmune diseases (3,19,20). Clinically, some individuals with SANT present with elevated IgG levels (21,22). Histologically, certain SANT lesions are characterized by a dense infiltration of IgG4-positive plasma cells within the newly formed stroma and at the periphery of red blood cells (23,24). In our pediatric cohort, immunohistochemistry revealed only sporadic, small numbers of IgG4+ plasma cells, without dense infiltration. Thus, our data do not support a strong IgG4 association in pediatric SANT. We therefore limit discussion of this topic to a brief mention, without clinical or therapeutic implications. If more pediatric SANT cases can be collected in the future, the underlying causes of the differences in IgG4 expression could be further elucidated.
The primary challenge in managing this disease is its diagnosis; nonetheless, the present study offers a thorough examination of its characteristic manifestations. A non-contrast CT scan identified an ill-defined splenic mass, while contrast enhancement delineated a distinct boundary, corroborating findings in the existing literature. On MRI, the non-contrast images displayed well-defined boundaries, and DWI revealed multiple high-intensity regions surrounded by strip-like low-intensity regions, in full agreement with previous imaging reports. In summary, CT imaging is effective in delineating the morphological characteristics of calcification. In contrast, MRI provides superior capability in illustrating specific imaging features, such as the pathological boundary of SANT, hemorrhage, necrosis, stellate fibrous scars, hemosiderin deposition, and enhancement patterns, which can be distinctly identified. Consequently, MRI imaging characteristics demonstrate a high degree of concordance with pathological findings. The progressive enhancement of the spokewheel pattern is recognized as a distinctive feature of SANT (5,25,26). Therefore, we suggest that the diagnostic accuracy for SANT can be improved through the combined application of CT and MRI. In the presence of these characteristic imaging features, SANT should be prioritized in the differential diagnosis. However, in our series, this pattern was present in only two of four cases (Cases 2 and 3). Its absence (Cases 1 and 4) did not exclude SANT. Therefore, while the spokewheel sign is valuable when present, it is not universally observed in pediatric SANT, and its absence should not discourage consideration of the diagnosis. Additionally, calcification has been reported in approximately 50% of cases, highlighting the necessity of considering pathological calcification as a feature of the disease (8,25). In the present study, a case was identified as a pancreatic calcifying fibrous tumor, potentially representing a calcified variant of SANT, in alignment with prior reports. Furthermore, it is essential to distinguish this condition from other splenic pathologies, including splenic hemangioma, splenic lymphatic malformation, and malignant splenic lymphoma, during the diagnostic evaluation. In clinical practice, when a solitary, well-circumscribed splenic mass is identified in children with a benign clinical course and centripetal or spoke-wheel enhancement, the possibility of SANT should be considered. However, pathological examination combined with immunohistochemistry remains the gold standard.
Recent studies suggest that percutaneous ultrasound‑guided core‑needle biopsy is a safe and effective diagnostic technique for SANT, with lower morbidity and cost compared to surgical resection. Histological examination [hematoxylin and eosin (H&E) stain] typically reveals angiomatoid nodules surrounded by stromal fibrosis, containing capillaries, small veins, sinusoids, erythrocytes, and inflammatory cells. In a case reported by Mariano Gómez Rubio et al., an asymptomatic female patient with SANT was diagnosed via this method and managed conservatively; follow‑up CT after 10 years showed no disease progression. Thus, core‑needle biopsy represents a promising diagnostic tool for SANT and warrants further investigation. In conclusion, combining imaging with percutaneous ultrasound‑guided core‑needle biopsy offers an effective non‑surgical strategy for confirming SANT. This study included only male pediatric patients. Despite the limited sample size, future studies should enroll larger and more balanced pediatric cohorts to better elucidate potential gender‑related differences between children and adults with SANT.
Splenectomy or partial splenectomy remains the mainstay of treatment. However, in children, early splenectomy may compromise immune function, adversely affecting growth and development and increasing the risk of infections. One of the most severe complications is overwhelming postsplenectomy infection (OPSI). Although OPSI can occur at any age, children—especially those under two years—are at increased risk. Initial symptoms (abdominal pain, nausea) may progress to fever, chills, vomiting, and even coma or shock. In conclusion, OPSI represents a critical infection that can rapidly progress to fulminant sepsis, posing a significant threat to patient survival (27,28). Although all patients in our cohort underwent surgery without complications, the risks of splenectomy in children—particularly OPSI—cannot be ignored. Given that SANT is a benign, non-neoplastic lesion, non-operative strategies have been proposed in the literature, including percutaneous ultrasound-guided biopsy for diagnosis and follow-up observation without resection. However, our study does not provide direct evidence for the safety or efficacy of such an approach, as all our patients were treated surgically. Therefore, we frame the following discussion as hypothesis-generating rather than as a conclusion supported by our data. In carefully selected pediatric cases with typical imaging features (e.g., well-defined solitary mass, spoke-wheel enhancement on MRI if present) and a benign clinical course, follow-up observation might be considered as a potential alternative to surgery, provided that a preoperative diagnosis can be confirmed by core-needle biopsy. This strategy, however, requires prospective validation. Until such evidence is available, surgical resection (partial splenectomy) remains the standard of care when diagnostic uncertainty persists.
It is undeniable that this study has several limitations. First, the sample size is very small (four patients), which limits the generalizability of our findings and forces us to present the results as descriptive and hypothesis‑generating rather than conclusive. Second, the retrospective design carries inherent risks of selection and information bias. Third, this is a single‑center study, and our case series may not reflect the broader pediatric population or institutional practices elsewhere. Fourth, all patients underwent partial splenectomy; therefore, our data provide no direct evidence for the safety or feasibility of non‑operative management (e.g., observation or biopsy alone). Fifth, potential selection bias exists because the cohort was derived from a surgical database, likely missing children with SANT who were managed conservatively or never diagnosed. Sixth, the cohort is heterogeneous: three patients had isolated splenic SANT, while one (Case 4) had splenic SANT with a synchronous pancreatic calcifying fibrous tumor, which may confound the analysis of pure splenic SANT. Additionally, all patients were male, which does not reflect the female predominance reported in adult literature. Collectively, these limitations highlight important areas that warrant further investigation in larger pediatric cohorts.
Conclusions
The identification of the distinctive “spoke‑wheel” imaging characteristics and contrast enhancement patterns on CT or MRI is crucial for accurate diagnosis. Furthermore, percutaneous ultrasound-guided splenic biopsy serves as a valuable diagnostic tool for pediatric patients. If these diagnostic approaches confirm a diagnosis of SANT, Close follow-up and observation may be considered as an alternative to surgery.; however, if confirmation is not possible, splenectomy or partial splenectomy may be considered as a treatment option. This study primarily explores the potential of follow-up observation as an alternative to surgical intervention in pediatric patients with SANT. The suggestion of non-operative management for pediatric SANT is currently speculative. Future multicenter prospective studies are needed to evaluate the safety of observation or biopsy-only approaches. Until then, clinicians should balance the benign nature of SANT against the surgical risks and the need for definitive diagnosis. This area constitutes the focus of our future research efforts. We intend to conduct further multi-center collaborative studies with a larger pediatric cohort to elucidate the pathogenesis of SANT and to establish a standardized treatment protocol.
Acknowledgments
None.
Footnote
Reporting Checklist: The authors have completed the AME Case Series reporting checklist. Available at https://tp.amegroups.com/article/view/10.21037/tp-2026-1-0164/rc
Peer Review File: Available at https://tp.amegroups.com/article/view/10.21037/tp-2026-1-0164/prf
Funding: The project was supported by
Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://tp.amegroups.com/article/view/10.21037/tp-2026-1-0164/coif). The authors have no conflicts of interest to declare.
Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the ethical standards of the institutional research committee and with the Helsinki Declaration and its subsequent amendments. The study was reviewed and approved by the Ethics Committee of the Children’s Hospital of Nanjing Medical University (No. 202402005-1). Written informed consent was obtained from the parents or legal guardians of all participating children for publication of this case series and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.
Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
