Biomechanical future of the growing pulmonary autograft in Ross operation

The clinical problem

The use of pulmonary autograft (PA) has been widely adopted for aortic valve disease in children and young adults. The majority of patients currently receive a PA due to its ability to match the somatic growth of cardiovascular structures in pediatric surgery alongside avoidance of life-long anticoagulation treatment (1). In the adult population, the use of PA is indicated for surgical treatment of bicuspid aortic valve, which is, the most common congenital heart pathology, affecting 1.3% of the population worldwide (2). Resistance among surgeons to using the pulmonary autograft in the aortic position is due to the ever-present risk of dilatation. Accordingly, the clinical benefit of using autologous tissue is hampered by the negative effect caused by systemic-pressure load associated with structural or non-structural deterioration of the valve substitute in the right ventricular outflow tract. Experimental studies highlight the various segments of the neo-aorta which have differing potentials for dilation, with the neo-valsalva sinuses and neo-sinutubular junction being the most frequently affected (3,4). The consequence is PA regurgitation leading to severe left ventricular dysfunction, a daunting issue in the long-term outcomes of patients who had surgery for congenital and acquired heart disease (5).

To elude this issue, a structural modification of the PA conduit in the early post-implantation phase would be desirable in order to match the increased pressure load requirements and possibly recreate similar elastomechanical and functional properties of the native aorta.

In our line of research, we reinforced the autologous tissue (PA conduit) with a composite semi-resorbable armoured prosthesis, which is then able to mechanically support the pulmonary autograft, preventing expansion and gradually complementing the pulmonary autograft morpho-structure. Inadvertently, we induced progressive arterial-like tissue remodelling (6,7). We further revealed the mechanisms of growth, remodelling and stress shielding of the reinforced PA through a large animal experimental model supported by an ex vivo mathematical and physical model (8).

What has the biomechanics of the growing PA taught us?

In order to elucidate the mechanisms underlying PA dilation and evaluate possible strategies to prevent complications, we developed a large animal model of then Ross operation (6). Even if technical issues and anatomical constraints prevented the realization of a complete Ross procedure, we were able to reliably reproduce the pressure-load sustained by the PA when transposed into the systemic arterial system. Briefly, experiments were performed in growing lambs, under cardiopulmonary bypass, and the PA conduit was used as a graft that was inserted in the descending aorta while the right ventricle outflow tract was reconstructed with a fresh homograft from another lamb of the same age and weight or native pericardial neoconduit (Figure 1). We observed the growth of the animal from 2 to 6 months, evaluating the augmentation of autograft diameter during the phase of fastest growth when the weight of the animal progressed from an average of 20 kg to an average of 60 kg (6-8).

Figure 1 Right ventricle outflow tract was reconstructed with a native pericardial neoconduit. (A) Neopulmonary artery made with native pericardium; (B) right ventricle outflow tract. Proximal anastomosis; (C) pulmonary artery (yellow arrow). Pulmonary autograft transposed without reinforcement (green arrow).

The experimental study also comprised of a group which received reinforcement by means of an external semi-absorbable armored prosthesis wrapped around the pulmonary autograft before implantation to circumvent the dilatation process. The semi-absorbable scaffold consisted of an inner layer of Polydioxanone (PDS) and external armour of non-resorbable ePFTE (Figure 2). The scaffold was size to a rectangle of 20 mm in height, equivalent to the height of the PA, wrapped on a metallic candle, and then arranged with a suture, so as to generate a cylinder with an internal diameter of 10 mm (20 mm height and 10 mm diameter). The pulmonary autograft was then included in the fibrillar cylinder (Figure 2A) and sutured at the level of both its margins and that of the prosthetic structure to the PA conduit (Figure 2B). Angiographical and echocardiographical measurements post-implantation and after 6 months were recorded and a histologic evaluation to demonstrate the structural modification of the vessel wall was performed. We observed that the non-reinforced group developed aneurysmal degeneration and intimal rupture. In contrast, we noticed the growth phase of the lamb had a concurrent increase in the diameter without aneurysmal dilation in the reinforced group (6,9). The histological analysis revealed the ability of the resorbable layer to integrate with the PA morpho-structure and to induce the deposition of a new extracellular matrix, mainly differentiated by the abundant production of elastic fibers (9,10).

Figure 2 Animal model of Ross operation. (A) Pulmonary autograft with external reinforcement of ePFTE; (B,C) the pulmonary autograft was reimplanted in the descending aorta and reinforced with ePFTE; (C) experimental Ross operation completed. The right ventricle outflow tract was reconstructed with a neopulmonary conduit made with native pericardium (yellow arrow). The pulmonary autograft is transposed in in the systemic pressure regime (green arrow).

At the same time, we matched the acquisition of the information using a physical-mathematical system suitably drawn to obtain a relationship between the in vivo model and the ex vivo model (11,12). This mathematical model was based on the assumption that from the geometric point of view, a blood vessel can be considered a thick-walled hollow (composite) cylinder, and that each layer according to the tissue microstructure offers a unique elastic anisotropy. These features are reflected in a specific elastic response of composite cylindrical structures subjected to gradual and increasing loading conditions (13). Clearly, the pressure load and growth of vascular structure resulted in large deformations and non-linear mathematical models (14,15).

In our model, the non-reinforced pulmonary autograft drastically expanded during the study period, losing its passing tube-like shape and the symmetrical response to stress. Estimation of wall strain using the Cauchy theorem revealed that the circumferential (hoop) strains in the middle layer of the PA wall with peaks measured at 800 kPa. This estimate is significantly higher and can bring the tissue stress threshold to a level determining critical mechanical states prior to aneurysmal degeneration. An analysis of the pressure-diameter curve confirmed a non-linear behaviour demonstrating a loud expansion for a range of inflation pressures as low as 50 mmHg. In our predictive model, the external diameter of the PA achieved pathological dimensions well before the curve exhibited its theoretical hardening (9-12,16,17).

We evaluated this effect on the behavior of the PA conduit by adding a semi-absorbable reinforcement and highlighted the differences. As demonstrated in previous studies and confirmed by current research, the reinforcement consisted of a resorbable material, which has been shown histologically to have the ability to integrate with the intermediate layer of pulmonary autograft causing the production of a new extracellular matrix with a high quantity of elastic fibers. The entire scaffolding is reinforced with ePFTE, which is an auxetic material distinct from a Poisson index of −2 to confer the mechanical-physical property of “close and up”. The cross-linked prosthesis is conceived by several repeated elements progressively shifting from a “dormant” unstretched configuration to a dilated and rigid one with the intention of driving the growth process and supporting the different grades of pressure loading. These features significantly affected the mathematical outlines (Figure 3). Overall, the prosthesis exercised a “relay race” type action because it guarantees the handover of the bearing structure functions from the PDS scaffold (at the early stages of tissue growth and remodeling) to the e-PTFE armor. In fact, this is initially “dormant” as a consequence of the typically low stiffness manifested by stress-free auxetic structures at minimal strain (Figure 4). Although the mechanical shielding of the lapse vessel works to decrease the radial expansion, it simultaneously allowed the pulmonary artery to remodel its morpho-structure to reach a relevant level of mechanical properties. This synergy is due to the fact that the PDS layer induced neoarterialization in the middle layer of the pulmonary autograft, which normally consists of a venous-like structure thereby conferring an increase in wall thickness. After the completion of the degradation program and strengthening of vessel walls, the bioabsorbable scaffold can actively react to the increasing systolic pressure by means of e-PTFE structure. The e-PTFE’s role combines the second phase of the process that accompanies the tunica media and adventitia of PA conduit towards their progressive aortic somatic growth. In fact, by stretching its weave the ePTFE layer gained stiffness and effectively prevented further vessel expansion, avoiding tissue prolapse and aneurysmal degenerative phenomena (Figure 4).

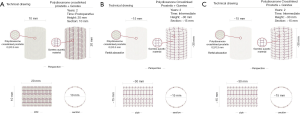

Figure 3 Concept and design of composite semi-resorbable armored bioprosthesis. Figure is schematically explaining the action of stress-shielding exerted by the scaffold (see text). The specific design of the ePFTE armor will allow multidirectional growth and resistance to dilatation (see text). The particular weave of the superior part of the armor (left) will progressively adapt and functionally compensate the characteristics of autograft growth. (A) Initial implantation; (B) intermediate phase; (C) complete development. Note the progressive resorption of the resorbable layer and the progressive expansion of the elements composing the mesh made by the auxetic material (ePTFE). Going from A to C over time, once the bioresorbable scaffold has completed its degradation program and strengthened the vessel walls, the e-PTFE structure took over in the process accompanying the PA media and adventitia toward their progressive aortic somatic growth while sustaining the pressure load. In fact, by stretching its weave from a “dormant” unstretched configuration the ePTFE layer gained stiffness and effectively confined further vessel expansion, avoiding tissue prolapse and aneurysmal degenerative phenomena.

Figure 4 Figure shows (A) sketch of the main biomechanically relevant features of the pulmonary autograft and the reinforcement; (B) nominal (first Piola-Kirchhoff) hoop stress versus circumferential stretch in artery and vein-like materials; (C) elastic reaction pressure against external vessel radius dilation exhibited by ePTFE auxetic reinforcement during pulmonary autograft growth and deformation; (D) in-time mass degradation of bioresorbable polydioxanone (PDS) structure. Adapted from Nappi et al.

With sensitivity analysis we have shown that the stress profiles and the difference in effective pressures between the internal systolic thrust and the limitation of the external reinforcement are evident; such that the prosthesis has a stress shielding effect that keeps the distribution of stress on the pulmonary autograft thickness sufficiently uniform (9-12) (Figure 4). During the analysis of the deformation level, the reinforcement allowed maintenance of a moderate stress level in the middle layer of the PA conduit with respect to the native physiological reference rate of the aorta (ticker and more rigid), reaching a safe state of stress set at about 100 kPa. On the other end, with the same sensitivity analysis performed on non-reinforced PA, we observed that the pressure-diameter curves had a much smaller range of variations in the outer diameter, within the same pressure interval. Our explanation to this phenomenon lies in the fact that in the reinforced PA conduit, the initial rigid behavior can be attributed to the balance between the internal thrust and the external pressure exerted by the e-PTFE. It is related to the ePTFE elastic reaction to vessel expansion. Subsequently, we observed the presence of an approximately proportional expansive region, followed by an elastic hardening at higher pressures. The explanation of this behavior is due to the combined effect of the mechanical properties of the neo-pulmonary autograft, depending on the new morphology which is related to the stress levels and to the reorientation and distribution of the elastic fibers as well as to the increasing rigidity of the auxetic material induced by the severely expanded elements of the armor (9-12) (Figure 4).

Future direction and areas of uncertainty

Overall the present study of the biomechanics of the pulmonary autograft might provide several insights and perspectives on the long-term clinical benefit of Ross procedure and pave the way for the use of bioresorbable reinforcements during the Ross operation.

Although the use of prosthetic Dacron grafts with an artificial aortic root configuration (Valsalva graft) as external reinforcement of the PA has been advocated by Carrel et al. (18,19) this new surgical strategy had a notably poor biomechanical assessment to detect significant differences in the frequency of clinical events. Although this approach aims at avoiding neoaortic root dilatation thus, guaranteeing the dynamic function of Valsalva sinuses, the role of a rigid Dacron graft to improve clinical outcomes remains unknown. Our experience has shown that the use of synthetic inelastic material is advantageous in preventing the dilatation of the pulmonary autograft subjected to unusual blood pressure, but these poorly deformable materials have a serious negative effect on pulsatility and compliance of the pulmonary autograft. When the autograft is engaged in a straight Dacron prosthetic graft, its ability to match the somatic growth of patients would be extremely limited, depriving physiological and somatic growth of the PA conduit (20-22). We previously demonstrated that the aortic wall compressed by the Dacron graft or other synthetic polyesters not only severely impair its compliance ¹² but provokes a strong inflammatory reaction with significant damage to the vessel of the reinforced PA conduit (23,24). Our studies also showed an improvement in the biomechanical behaviour of the reinforced pulmonary autograft using resorbable materials which integrates within the PA morpho-structure. This concept is biologically plausible and is directly supported by the fact that resorbable polyester may facilitate the PA remodelling and the physiological process of growth in vascular structures (20).

This last point is significant when these considerations are translated into the clinical setting as a guide for cardiologists for the indication of using pulmonary autografts to treat severe disease of aortic valve and LVOT (16,17). The use of the Ross operation is recommended in children and young adults. However, the use of this procedure at earlier stages in life is known to be associated with an increased incidence of PA dilation and degeneration (1,25). Thus, one reason for the wider use of reinforcement strategies is to circumvent these complications in children and young adults. In this category of patients, the advantages are compounded by negating the need for life-long anticoagulant drugs, superior hemodynamic performance of the pulmonary autograft (4) and respect for physiological growth, making them even more in demand (3).

In summary, we believe that instead of ‘swallowing’ literature with 10 years of clinical follow-up on the Ross operation and its subsequent meta-analysis, a new impetus should be given to basic and translational research to stimulate the development of bio-artificial vascular substitutes and provide an immediate future for the Ross procedure. The future clinical use of pulmonary autograft in the treatment of severe aortic valve disease is a marriage of the knowledge of the synergistic process of growth, vascular remodeling and protection from stress, which occurs when the pulmonary autograft is translated into systemic pressure regimens with a high-stress load.

For the future of Ross Operation less art, more biomechanical science
