Narrative review of congenital lung lesions

Introduction

Congenital lung lesions represent a group of anomalies that include congenital pulmonary airway malformations (CPAM), bronchopulmonary sequestrations (BPS), congenital lobar emphysema (CLE) (Figure 1), and bronchogenic cysts (1). Their incidence has increased in recent years based on several population-based studies, which suggest a frequency of 1 in 2,500 live births (2,3). This rising incidence is likely due to the widespread availability of prenatal ultrasound combined with the improved resolution of ultrasound technology that enables the detection of smaller lung lesions.

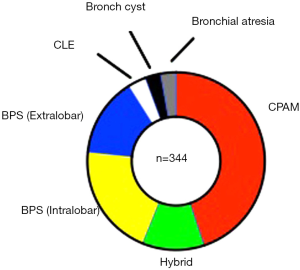

Figure 1 Graph showing the relative frequency of different types of prenatally diagnosed congenital lung lesions, with permission (1).

Fetal pulmonary masses appear to be sporadic without any association with maternal factors such as ethnicity, parity, age, or other factors. A 10–20% anomaly rate has often been cited (4), but only 5–10% of fetuses will have another major anomaly coincident with the pulmonary lesion (5). Lung malformations are not associated with karyotype anomalies.

We present the following article on the contemporary diagnosis and management of antenatally diagnosed congenital lung lesions in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/tp-20-133).

Types of lung malformations

CPAM

The most frequently encountered lung lesions are CPAMs, which were previously referred to as Congenital Cystic Adenomatoid Malformations or CCAMs (Figure 2) (6). Historically, CPAMs were classified by the Stocker classification, defined by Roman numerals—type I were macrocystic, type II were mixed, and type III were solid/microcystic (4). The motivation to adopt the more generic term for these lesions, CPAM, was driven by pathologists who sought more accurate terminology for these lesions, many of which were neither cystic nor adenomatoid. There are five different types of CPAMs, defined by Arabic numerals (0–4) based on the relationship to abnormal histology relative to the main airways (7). Stocker’s pathological classification has been widely used to describe prenatal lung lesions, but this practice correlates poorly with postnatal diagnosis and has no real prognostic value. The most useful classification scheme for fetal CPAMs was proposed by Adzick and is simply based on whether they are macrocystic or microcystic by ultrasound (8).

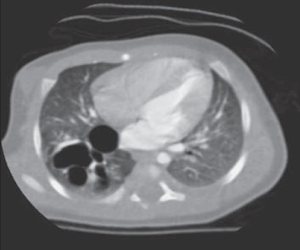

Figure 2 Chest CT transverse section (lung window) showing a congenital pulmonary airway malformation involving the right lower lobe, with permission (6).

The unifying feature of all lung lesions, regardless of their specific subtype, is aberrant lung morphogenesis during the pseudoglandular stage of fetal pulmonary development. Early fetal proximal airway obstruction may be an inciting event in their pathogenesis (9,10). Further support for this developmental aberration is based on persistent epithelial expression of nuclear regulatory protein, TTF-1 (11). Genetic examination has largely been focused on the basis of faulty branching and budding of the lung. For example, investigators have examined resected CPAMs and found that those masses with the HOXB5 gene present had twice as much cell proliferation and evidence of increases apoptosis when compared to a normal lung (12).

Hamartomas and terminal bronchiole overgrowth are common features on CPAMs on histologic evaluation. Unlike bronchogenic cysts and BPS lesions, most CPAMs are in direct communication with adjacent lung parenchyma. Since CPAMs usually have abnormal alveoli, gas exchange is poor, and larger lesions can expand, causing mass effect to adjacent normal lung tissue. In three-fourths of cases, affects one of the lower lobes (1). Bilateral and multi-lobar disease is uncommon.

Although blood flow within CPAMs is based on the pulmonary vasculature (i.e., pulmonary arteries and veins), mixed/hybrid lesions, which have features of intralobar BPS, are often encountered. These hybrid masses will often have pulmonary venous drainage but will rely on systemic blood supply from the aorta. The high frequency of mixed/hybrid lesions suggests a common disease pathogenesis among the various lung lesions during development (10).

BPS

BPS are the second most common pulmonary lesion. CPAM and BPS are often confused with one another since they both produce mass effect on adjacent mediastinal structures and have a propensity for the lower lobes. One study has suggested that one-quarter of pulmonary specimens has histology consistent with a CPAM but also is supplied by a systemic arterial blood supply (i.e., hybrid/mixed lesions) (13). Another major and distinct feature of all BPS lesion is the lack of airway communication (sequestration) to the native lung. Accordingly, the abnormal lung tissue tends to be non-aerated although some collateral ventilation via the pores of Kohn from adjacent lung tissue is possible.

As shown in Figure 3, the identification of a systemic arterial blood supply, usually from the thoracoabdominal aorta, is pathognomonic for BPS (14). Less commonly, the systemic artery can arise from the gastric or splenic artery. Over time, large systemic arteries feeding untreated BPS lesions can cause cardiac overload and heart failure. The growth characteristics and management of fetal BPS lesions are similar to those with fetal CPAM (15).

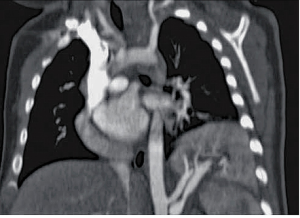

Figure 3 Chest CT coronal section (abdominal window) demonstrating a left bronchopulmonary sequestration with a large systemic blood supply arising from the aorta, with permission (6).

The type major types of BPS are intralobar (75%) and extralobar (25%) (1). Intralobar sequestrations are at increased risk for bacterial seeding with subsequent pneumonia because they are contained within a common visceral pleura with normal aerated lung. Extralobar BPS is much less prone to infectious complications since they represent accessory lobes that have their own distinct pleura and systemic venous drainage that is separate from normal lung tissue.

Bronchogenic cysts

Bronchogenic cysts are unilocular intrathoracic masses and are much less common than other lung masses. They are foregut malformations that are thought to originate embryologically from anomalous budding of the tracheobronchial tree with subsequent failure to recanalize (16). Based on imaging studies, bronchogenic cysts tend to be more centrally located within the chest. Common locations include paratracheal or adjacent one of the mainstem bronchi. Large, expanding bronchogenic cysts can cause central airways obstruction with or without distal lung hyperinflation. Histologically, bronchogenic cysts contain cartilaginous tissue with ciliated mucus-secreting columnar epithelium. Mucus buildup with the cyst itself can lead to steady enlargement and/or infection.

CLE

CLE is a rare but well-known disorder associated with acute respiratory distress in newborns. In contrast to CPAM and BPS, antenatal diagnosis is rare (17) due to their isoechoic appearance and lack of mediastinal shift in utero. The CLE is prone to overinflation of the affected parenchyma for a variety of reasons, which can include intrinsic bronchial stenosis, bronchomalacia, extrinsic bronchial narrowing, and polyalveolar lobe (18). Pathologic exam can reveal mild bronchial ectasia consistent with lesions within the bronchial atresia spectrum. As in CPAMs, temporary bronchial stenosis/obstruction in utero is thought to be an important driver of aberrant lung development (10).

Children with CLE often develop progressive air trapping with the affected lung, thereby resulting in shifting of the mediastinal structures to the contralateral thorax and profound respiratory embarrassment (2) (Figure 4). The left upper lobe, often with sparing of the lingual, as well as right middle lobe are most common locations for CLE. CLE isolated to segmental portions of a lobe has been described and may produce minimal symptoms (19). The role of elective resection of asymptomatic CLE is controversial.

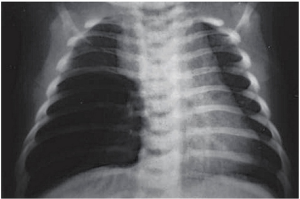

Figure 4 Plain radiograph of the chest (anteroposterior view) in a neonate showing hyperinflation of the right middle lobe with mass effect and mediastinal shift. The lesion was a congenital lobar emphysema, with permission (6).

Fetal diagnosis

Approximately 70% of all congenital lung malformations are now detected during fetal anatomic survey (Figure 5) (20). While ultrasound is a useful tool for the detection of hyperechoic and cystic lung lesions, there is definite potential to misdiagnose primary fetal lung masses for other anomalies. Congenital diaphragmatic hernia (CDH) is one of the more common errors in fetal diagnosis. CDH carries a much more guarded prognosis but can easily mimic a macrocystic CPAM isolated to the left lower lobe. Other disorders in the differential diagnosis to consider when identifying a suspected lung malformation are shown in Table 1 (21).

Figure 5 Plain radiograph of the chest (anteroposterior view) in a neonate showing hyperinflation of the right middle lobe with mass effect and mediastinal shift. The lesion was a congenital lobar emphysema, with permission (6).

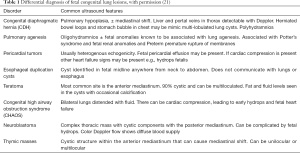

Table 1 Differential diagnosis of fetal congenital lung lesions, with permission (21)
Full table

The role for amniocentesis remains undefined in the management of fetal lung lesions. Since these are not known to be intimately related to genetic disorders, an amniocentesis is considered unnecessary when a solitary lung lesion is identified. However, if a concomitant anomaly is discovered, complete genetic screening should be performed per obstetrical indications.

The overall perinatal prognosis of a fetus affected by the lung malformation is strongly associated with its overall growth during pregnancy rather than by its underlying histology (5). This concept has been supported in numerous studies, all which have shown that mass size, as opposed to type of lesion, is most predictive of perinatal outcome based on a variety of outcome measures, including fetal hydrops, neonatal respiratory symptoms, and likelihood of lung resection in the newborn period (5,20,22,23). The most common metric for lesion size is the CPAM volume ratio (CVR), which measures the three-dimensional size of the lesion relative to the fetal head circumference (24). The CVR formula is:

width×depth×length×0.52headcircumference=CVR[1]

CVR measurements are relatively easy to measure, reproducible, and can be calculated based on transverse and sagittal views on 2D ultrasound. CVRs are helpful since they are adjusted for fetal size and therefore can be used to track relative growth of the lung lesion over time. Although many maternal-fetal medicine providers have historically focused on secondary parameters, such as polyhydramnios or mediastinal shift, more recent multicenter data suggests that the maximum CVR during gestation is the best predictor of perinatal outcome (20). In the majority of children with small lung lesions, prenatal MRI usually adds little additional diagnostic information that would change management and is therefore probably not cost-effective (25). The role of fetal echocardiography remains controversial and should be considered on a case-by-case basis given the low incidence of a concomitant cardiac anomalies (5).

Many lung malformations undergo an initial growth phase between 20 and 26 weeks gestation. This is often followed by plateau or regression phase for the remainder of pregnancy (15,26). However, some lesions do not follow this growth pattern so there remains no widely accepted prediction tool that has been adopted to predict which lesions will change dramatically in size. In some cases, lung lesions may actually completely disappear spontaneously (so-called “vanishing” lesions) although this is usually an artifact since lung malformations often become sonographically isogenic with normal lung parenchyma by term (27,28). In about 40% of cases, the lesion can be detected by postnatal chest CT scan (28). Therefore, in all lung malformations that are not detectable towards the end of pregnancy, parents should be informed that late gestation fetal ultrasound and postnatal plain films cannot be used to rule out the presence of a previously diagnosed prenatal lung lesion since the mass often still present when imaged by postnatal CT.

A proposed CVR-based algorithm based on recent data from the Midwest Pediatric Surgery Consortium is shown in Figure 6 (20). Peak CVRs less than 0.9–1.0 throughout the pregnancy are highly predictive (>90%) of asymptomatic disease at birth (Figure 7) (5). In cases where the lung malformation is small, prenatal consultation with a pediatric surgeon is helpful for most families and can help establish a relationship with the parents for follow up after birth. Those with small lung lesions can be safely delivered at a local birthing center without substantial neonatal intensive care or pediatric surgical support. A normal vaginal delivery can be performed if a cesarean is not indicated for other clinical reasons.

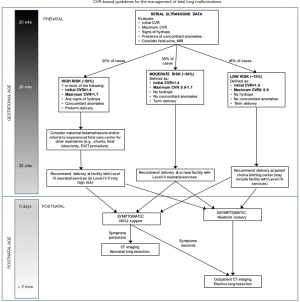

Figure 6 Congenital pulmonary airway malformation volume ratio (CVR)-based management algorithm for prenatally diagnosed lung lesions, with permission (20).

Figure 7 Correlation between the congenital pulmonary airway malformation volume ratio (CVR) and neonatal respiratory symptoms (Sx). Line graph of CVR stratified based on presence or absence of respiratory symptoms (left) and vertical bar graph of CVR based on initial, maximum, and final CVR measurements (right), with permission (5). *P<0.05.

For larger prenatal lesions, such as those with CVRs greater than 1.0 in association with mass effect, hypoplasia of the adjacent fetal lung can occur (29). Massive lesions can also cause mediastinal compression, leading to esophageal obstruction and polyhydramnios. The most feared complication associated with massive lung masses is nonimmune hydrops, which can present with ascites, pleural/pericardial effusions, skin edema, and/or placentomegaly. Mass effect on the heart can lead to compromised venous return to the right atrium and ultimately in utero heart failure (30,31). Fortunately, hydrops probably occurs in fewer than 10% of cases based on a multi-institutional report (1). Fetuses at increased hydrops risk are those with an initial CVR of at least 1.4 (20,24). Although many fetuses with high CVRs will not develop hydrops, this group remains clearly at increased risk for respiratory symptoms and may require ventilator support in the neonatal intensive care unit, emergency lung resection, and less commonly, extracorporeal membrane oxygenation (ECMO).

Fetal management

Maternal steroids, thoracoamniotic shunts, fetal mass resection, and ex utero intrapartum treatment (EXIT) procedures may play an important therapeutic role in large congenital lung lesions with hydrops or impending hydrops.

Maternal steroids

The beneficial effect of steroids in the management of hydropic fetal lung lesions was a serendipitous discovery first reported by the University of California, San Francisco (UCSF) group in 2003 (32). In this case series, they described three fetuses with lung lesions and non-immune hydrops who either declined or were not candidates for fetal surgery. In an attempt to improve fetal lung maturity before birth, maternal betamethasone was given with the unexpected observance of complete hydrops resolution and near-term delivery without any respiratory compromise. Since this initial experience, subsequent studies at other major American fetal centers have shown a similar positive response using maternal steroids, particularly in microcystic lesions before 26 weeks gestation. In a retrospective review of patients with microcystic CPAMs and hydrops, 92% (12 of 13) fetuses in the steroid-treated group survived to delivery compared to 82% (9 of 11) in the open fetal surgery group (33). Moreover, only 56% of the open fetal surgery group survived to discharge whereas 83% of the steroid group survived to discharge. In another study, maternal steroids were associated with a decline in the CVR and resolution of hydrops in 80% of cases (34).

Given these results and the relatively low maternal-fetal risk profile associated with two doses of systemic steroids, maternal betamethasone (12.5 mg/day intramuscular ×2 days) is now considered first-line therapy for large microcystic lesions (e.g., CVR >1.6) with hydrops or impending hydrops. Based on a recent multi-center study of surgical patients, antenatal material steroids were administered to 12% of fetal lung lesions (20). Since the positive effect of steroids has been rather compelling, a randomized control trial of maternal steroids would currently not be considered ethical because it would withhold treatment in the control arm of mothers carrying hydropic fetuses.

However, it is important to note that steroids have never been rigorously tested compared to observation alone, and that the drug appears to be most effective in fetuses less than 26 weeks gestation with microcystic disease. We have seen a precipitous decline in the need to perform open fetal surgery for hydropic fetuses since the adoption of steroids. The Cincinnati group, among others, has shown that steroids do not seem to be as effective in hydropic fetuses with macrocystic lesions, implying a different underlying developmental biology (35). We can only speculate on the mechanism of action for the therapeutic effect of steroids, but current thinking is that steroids may facilitate the transition from the canalicular to saccular stage of development, in part by inhibiting abnormal mesenchymal proliferation within the lung lesion.

Thoracoamniotic shunts

There is a clear role for catheter-based interventions, namely thoracoamniotic shunts, in hydropic fetuses with large lesions containing a dominant macrocyst (34). Thoracoamniotic shunts may also be indicated for hydropic fetuses with an associated ipsilateral pleural effusion (36). In these situations, steroids are often attempted first, with a percutaneous shunt placement reserved for non-responders.

Shunting procedures are performed under ultrasound guidance with minimal disruption to the uterus and amniotic sac using a 2.5 mm trocar assembly into the cavity of interest. The sharp trocar is then withdrawn into the introducer sleeve and replaced with the shunt catheter. Finally, the introducer sleeve is withdrawn, leaving the proximal end of the catheter in the amniotic space. The most commonly used shunts are 2.1 mm silastic catheters with pigtails that end at 90 degrees to each other, such as the KCH fetal bladder catheter (Rocket Medical) or the Harrison fetal bladder stent (Cook Urological). The double pigtail design helps to minimize shunt dislodgement and can theoretically remain in situ until birth.

Despite this being a minimally invasive procedure without the need for maternal anesthesia, there are still associated maternal-fetal risks. The CHOP group published a case series on thoracoamniotic shunt placement and reported peri-procedural complications including premature preterm rupture of membranes (PPROM), preterm labor, chorioamnionitis, shunt occlusion, and fetal dislodging of the shunt requiring a new shunt placement with the same risks. Another study followed post shunt candidates after birth and demonstrated postnatal rib deformities in 77% of the neonates. The deformities ranged from mild rib thinning to severe chest concavity (37).

Fetal lung resection

Until the introduction of steroids as first-line therapy for hydrops in the setting of microcystic disease, prenatal lung resection via open surgery was the mainstay procedure in the rare hydropic fetus before the third trimester. Less invasive alternatives, including various lasers and coagulators, have been tried with varying success in an attempt to effectively ablate fetal lung tumors (38). Unfortunately, many of these technologies tend to cause local edema first, thereby worsening the situation before improving physiology.

Open fetal lung resection was pioneered by Harrison and colleagues at UCSF. It has the potential for significant morbidity because it involves maternal laparotomy, maternal hysterectomy, and fetal thoracotomy incisions (Figure 8) (39). Full uterine relaxation is required in order to optimize uteroplacental circulation during fetal manipulation. The fetus should be free of other anomalies, and a karyotype is required to rule out a concomitant fatal aneuploidy. The mother should also be counseled of her personal risk and excluded from fetal surgical intervention if she does not meet stringent criteria.

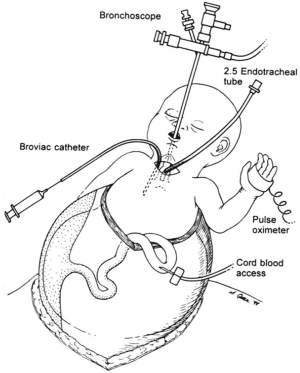

Figure 8 Schematic depiction of ex utero intrapartum treatment, with permission (39).

Currently, fetal lung resection is reserved for pre-viable and borderline viable hydropic fetuses with solid lesions (i.e., microcystic CPAMs and BPS) that are non-responders to a trial of maternal steroids. Given the high-risk for complications, including maternal exsanguination and preterm labor, this endeavor requires a highly skilled, multidisciplinary team consisting of a cadre of specialists, each with a defined role within the operating room. It is therefore not surprising that fetal resection has only been successfully performed in a reproducible fashion at a handful of fetal surgery centers worldwide (29,40). Preoperative preparation typically begins several hours before the procedure with the administration of tocolytic agents to minimize perioperative preterm labor. Prior to induction, mothers may receive a lumbar epidural catheter to minimize postoperative pain and uterine irritability. Deep general anesthesia with isoflurane or desflurane is used to decrease uterine tone, while simultaneously maintaining maternal blood pressure at preoperative levels thereby preserving maternal-fetal gas exchange at the placental interface. Common intraoperative maternal monitoring includes an invasive arterial line, continuous echocardiography and pulse oximetry, and an end-tidal carbon dioxide monitor. Aggressive fluid resuscitation with crystalloid is generally avoided because of the risk of postoperative pulmonary edema associated with tocolytic agents, particularly magnesium sulfate.

After a low transverse incision has been made on the maternal abdomen, the position of the placenta is mapped with ultrasound and marked on the surface of the uterus. The uterus is then opened using a specially designed, uterine stapler device containing lactomer staples. The stapler helps to create an 8-10 cm bloodless hysterotomy and maintains the integrity of the fragile chorion and amnion in setting of complete uterine relaxation. Once the uterus is opened, medications are given for fetal analgesia (e.g., fentanyl 10 mg/kg intramuscularly) and neuromuscular blockade (e.g., vecuronium 200 mg/kg intramuscularly). To maintain uterine distention, a catheter connected to a Level I-type rapid infuser is placed deep into the amniotic cavity for continuous infusion of warm lactated Ringer’s solution at 400 mL per minute. During fetal manipulation, consideration must be made toward profound intra-operative fluid shifts. Therefore, the procedure requires fetal intravenous (IV) access followed by pretreatment with fluid (blood) and atropine for volume expansion and cardiac support. A standard TA stapling device is often utilized during the resection phase of the operation to remove the mass from the hilum. A meticulous hysterotomy closure is essential because the presence of amniotic fluid between the membranes and the myometrium is a powerful stimulus to preterm labor. At the time of uterine closure, a 6 gram bolus of magnesium sulfate followed by a continuous infusion at 2 grams per hour is initiated.

The overall mortality risk associated with open fetal surgery is approximately 50%. Adzick and colleagues recently described 24 cases of open fetal surgery for lung lesion (30). There were 13 survivors with 11 fetal deaths. Among these deaths, one mother developed maternal mirror syndrome and required immediate delivery. Six babies died intra-operatively likely related to a massive cardiac decompression after removal of the large lesion (30). After fetal surgery, there is risk of preterm premature rupture of membranes and preterm labor, both of which can add further morbidity to both mother and fetus. When the suitable delivery time has been agreed, the mother then has to undergo a cesarean section as her non-classical hysterotomy has not healed in a manner to withstand labor forces. There can also be deleterious consequences in light of the increased risk for placenta accreta, maternal and fetal morbidity, and mortality related to cesarean sections. There is an increased risk for intra-abdominal adhesions that have been known to create both technical surgical difficulties at the time of cesarean section and can lead to increased risk for bladder and bowel injuries.

The EXIT procedure

The EXIT procedure was perfected at UCSF as a perinatal operative maneuver just prior to delivery to ensure a smooth transition of the fetus to postnatal life (41). The role and indications for an EXIT procedure for lung masses remain somewhat controversial, but proponents argue that it provides an unparalleled, hemodynamically stable environment for the child, thereby maximizing the chance for survival in hydropic fetuses that have reached the stage of viability.

In an EXIT procedure, a maternal laparotomy and low transverse uterine segment hysterotomy are performed using the standard techniques of open fetal surgery. Deep maternal anesthesia is required to facilitate complete uterine relaxation and to maintain “placental bypass” to the fetus following a hysterotomy. The fetal head and torso are then exteriorized from the uterus, followed by orotracheal intubation and placement of a peripheral IV (Figure 9). In most cases, the lung mass is resected through a large thoracotomy while still on placental support (42).

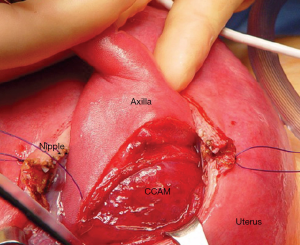

Figure 9 Fetal left thoracotomy and lobectomy for a congenital pulmonary airway malformation.

The rationale for the EXIT-to-resection approach is based on the ability to provide immediate relief of severe mediastinal compression in order to allow for adequate room for the native lungs to function postnatally. EXIT-to-resection procedures can be performed with excellent outcomes (43). Alternatively, hydropic fetuses with smaller lesions could undergo a trial of ventilation with emergent neonatal lung resection performed in an adjacent operating room after delivery. Delayed mass resection following cannulation of the fetus for ECMO while on placental support has also been reported when more complex, tedious thoracic surgical procedures (e.g., carinal resection for an obstructing bronchogenic cyst) are required for definitive treatment (44).

Postnatal management of lung lesions

Newborns with respiratory symptoms represent 10% of prenatally diagnosed lung malformations and can be reliably predicted based on elevated CVRs (20). In the presence of respiratory distress, plain films of the chest are the best initial study to determine the degree of mediastinal shift and to rule out an associated pneumothorax. Echocardiograms should be performed to assess for right heart function and to look for congenital heart defects. Thoracotomy and lobectomy in symptomatic neonates are the standard of care. A preoperative computed tomography (CT) scan is ideal in most cases since a systemic feeding vessel may be present, regardless of negative findings from prenatal ultrasound (25). Rarely, a thoracotomy may be required on an emergent basis, particularly in CLE lesions, due to rapid and progressive air trapping exacerbated by positive pressure ventilation. The need for perioperative ECMO is rare but can be a life-saving option to support these children (1).

Asymptomatic patients typically have CVRs consistently less than 0.9 and make up approximately 90% of children with a prenatally diagnosed lung malformation (5). Newborns can usually be discharged from the hospital in accordance with established well-baby protocols. However, prior to discharge, chest radiographs are often ordered to establish a baseline for subsequent imaging. However, these studies may appear as normal since the sensitivity for detecting a pulmonary mass is between 50–80% (17,45). A congenital lung mass should never be ruled out based solely on plain films.

Follow-up with a pediatric surgeon at between 4–12 weeks of age is recommended in all asymptomatic cases. The gold standard diagnostic test to determine the presence or absence of a lung lesion is a chest CT scan with intravenous contrast. Sedation/general anesthesia during this study is sometimes required for older infants who cannot be calmed by swaddling.

The role and timing of surgery in asymptomatic lung lesions remains controversial, particularly of the United States (46,47). The rationale for preemptive resection of CPAM and BPS lesions is based on the desire to avoid predictable and well-known complication of pneumonia refractory to antibiotics. Intralobar BPS and CPAMs are particularly susceptible to pneumonias and pulmonary abscesses, presumably due to impaired mucociliary clearance of pathogens. However, the true pneumonia risk has not been well defined and ranges from 5% to 86% (47-49). Malignant degeneration of CPAMs has been described (50), but the overall risk is probably extremely low for prenatally diagnosed lesions (<1%). More importantly, cases of cystic pleuropulmonary blastoma (PPB), a malignant lung tumor seen in infants and associated with the DICER1 mutation in many cases, have also been observed in lesions that were thought to be macrocystic CPAMs based on cross-sectional imaging (51,52). It is important to note that PPB cases tend to be symptomatic, are usually not detected antenatally, and do not have a systemic blood supply.

Another area of interest in the postnatal care of lung malformations is the role of non-operative management as an evolving management strategy in selected situations. Some surgeons in Europe, the United Kingdom, and elsewhere have argued for the observation of asymptomatic lung malformations, particularly those that were prenatally diagnosed and appear to be small CPAMs, CLEs, or extralobar BPS lesions because their natural history is believed to be more benign (47,53). Proponents on non-operative management would also argue that surgical management is not always well tolerated and exposes children to potential major postoperative morbidity (1,44). In one review from the United Kingdom, children who subsequently developed symptoms requiring lung surgery was uncommon at a median follow up of five years (49). The costs and radiation risks associated with serial imaging are the main drawbacks of non-operative management in the long term. Should one of these lesions become infected, they tend to be not very responsive to antibiotics and may mandate prolonged hospitalization. The pleural scarring that can occur following a previously infected lesion can also make delayed resection of lung malformations more dangerous and difficult (54).

Under the care of an experienced pediatric surgeon, the operative morbidity of an elective lung resection is low (55). The widespread adoption of minimally invasive lung resection has been witnessed over the past decade (56), and the majority of all elective lung resections are now performed using thoracoscopic techniques. Outcomes after thoracoscopic lobectomy result in excellent cosmesis. Muscle-sparing thoracotomy incisions represent a viable alternative and are associated with relatively low long-term musculoskeletal morbidity (13). Formal anatomic lobectomy is preferred to partial lobectomies (e.g., segmentectomies, wedge resections), which have an increased potential of inadvertently leaving behind residual disease. The median hospital length of stay, regardless of operative approach, is approximately three days (56). The optimal timing of elective lung surgery remains undefined (1), but some North American and European surgeons have advocated lung resections by six months of age before the onset of pneumonia and to maximize the opportunity for compensatory lung growth (13,57,58).

Conclusions

Because of the relative rarity of CPAMs, BPS, and other congenital lung malformations, they continue to be misunderstood entities by some pediatric providers. However, as ultrasound imaging continues to improve, the diagnosis and management of these masses during the prenatal period will only become more frequent, and our knowledge will increase. Regardless, it is vital that these lesions are appropriately managed because of the long-term prognosis should be excellent in most cases. Based on measurement tools such as the CVR, we are now gaining a better understanding of their growth patterns and have developed useful sonographic parameters to predict fetal well-being. Serial growth ultrasounds should be performed to evaluate the mass, to assess the fetus for other anomalies and to plan for delivery and future treatment. Fetal MRI and other diagnostic testing can sometimes be helpful in providing additional prognostic information. At this current time, invasive fetal intervention is reserved for hydropic patients who have failed steroid therapy. We have learned that prenatal diagnosis of the type of malformation is not particularly helpful in terms of gauging risk for hydrops, respiratory morbidity, and long-term outcomes.

A multi-disciplinary team should play a vital role in ensuring that the mother and fetus receive current and recommended treatment and are managed antenatally, intrapartum, and postnatally with utmost care. Even in asymptomatic babies, or those infants with ultrasounds suggestive of a vanishing lesion, they should still undergo investigation with a postnatal CT and evaluation with a pediatric surgeon because of the risk of long-term sequelae.
