Laparoscopic percutaneous extraperitoneal closure with peritoneum reinforcement repair for pediatric inguinal hernia: a single-center experience with over 2,000 patients

Introduction

Inguinal hernia is one of the most common pediatric diseases that requires operative treatment (1-3). Laparoscopic repair for pediatric inguinal hernia has become more and more popular (4-6). Laparoscopic percutaneous extraperitoneal closure (LPEC) of the internal ring is a safe and effective approach to pediatric inguinal hernia, and has been widely used with many advantages, such as repair of contralateral patent processus vaginalis (CPPV), low rate of recurrence, reduction of operative time, and good result of cosmesis (7,8).

In this study, we modified a kind of peritoneum reinforcement technique for the repair of pediatric inguinal hernia, which has a lower recurrence rate than LPEC. LPEC with peritoneum reinforcement (LPECPR) circuited and demixed suturing twice around the internal inguinal ring to reinforce peritoneum. In the present study, we reviewed the outcomes of 2,018 patients with symptomatic inguinal hernia undergoing LPECPR repair in our center to assess the technical feasibility and efficiency.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/tp-21-25).

Methods

Clinical data of patients

We retrospectively reviewed 2,018 patients with a markedly inguinal hernia, who underwent LPECPR repair at the department of pediatric surgery of the First Affiliated Hospital of Shantou University Medical College in China between July 2011 and December 2020. The diagnoses were based on clinical presentation and physical examination, with or without ultrasonography. Inclusion criteria for LPECPR repair were as follows: all patients with inguinal hernia diagnosed by non-emergency and patients with emergency incarcerated hernia who could be manual reposition. Exclusion criteria: (I) hernia repair surgery requiring transfer to open surgery; (II) hernia repair in cryptorchidism surgery; (III) hernia repair in appendicitis surgery; (IV) neonatal hernia repair. The main outcome observations of this study included; age, operative time, hospital stay, presence of CPPV, hernia recurrence, scrotal edema, suture site abscess, umbilical hernia, testicular atrophy and iatrogenic ascent of the testis. The patient characteristics are shown in Table 1. This study was approved by the ethics committee of the First Affiliated Hospital of Shantou University Medicine College (B-2021-021). All procedures performed in this study involving human participants were in accordance with the Declaration of Helsinki (as revised in 2013). Individual consent for this retrospective analysis was waived.

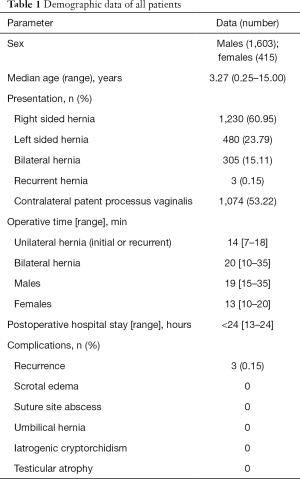

Table 1 Demographic data of all patients
Full table

Homemade hernia needle with Kirschner wire

A Kirschner wire (Figure 1A), flatten its tip, then punch an oval hole in the center of the front, and finally polish the front of the needle (including the hole) (Figure 1B,C). The end of the needle can be folded into a triangle/oval or untreated. The method of making homemade hernia needle is simple, economical (even cost-free), and effective. It is very suitable for basic hospitals and units with difficulties in purchasing medical instruments.

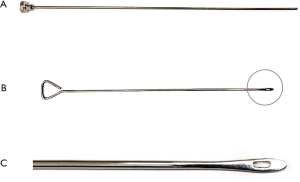

Figure 1 Homemade needle with Kirschner wire for laparoscopic repair inguinal hernias. (A) A Kirschner wire used in orthopedics. (B) Flatten Kirschner wire tip, then punch an oval hole in the center of the front, and finally polish the front of the needle (including the hole). (C) Enlargement of the homemade needle tip (circled) of (B).

Surgical procedure

After general anesthesia, the patients lie supine in the Trendelenburg position at a 15° tilt. The television screen was placed in the lower right corner of the patient. The surgeon stood at the patient’s left while the assistant held the laparoscope at the right side. A 5-mm curvilinear supraumbilical skin incision was made. A Veress needle was inserted into the abdominal cavity, and pneumoperitoneum was established to a pressure of 8 to 10 mmHg. A 5-mm trocar was inserted through this incision, and a 5-mm 30° laparoscope was inserted to this trocar. A 3-mm stab incision was made on the left of umbilicus for the inserting of a 3-mm trocar. Through the 3-mm trocar, a 3-mm assisted forceps was introduced into the peritoneal cavity. A 1.0-mm stab incision was made at the surface projection of the internal ring. Under laparoscopic monitoring, a homemade needle with 2-0 polyester nonabsorbable braided suture and 4-0 vicryl suture was inserted into the anterior abdominal wall through the 1.0-mm stab incision (Figure 2A). The internal half circle was begun extraperitoneally from the internal edge to the external edge around the internal inguinal ring. After the needle advanced on the vas deferens and vessels, or down to the round ligament of uterus, peritoneum was punctured (Figure 2B). The 2-0 suture was released into the abdominal cavity (Figure 2C). After the needle was withdrawn to the roof of the ring under the peritoneum, it was advanced along the external side of the ring and got into the abdominal cavity through the same puncture hole as the internal half circuit (Figure 2C,D). The 4-0 suture was pulled on one side of the needle to form a loop, and the end of the 2-0 suture was grasped to pass through the loop (Figure 2D). The needle was drawn out of the abdominal cavity. Simultaneously, the 4-0 suture was pulled by the assistant extracorporeally. After this step, the 2-0 suture was placed around the inguinal ring under the peritoneum (Figure 2E) and both of its ends were passed through the same puncture point and tunnel. After gas in the distal sac was squeezed out, the 2-0 suture was tied tightly extracorporeally, and the internal ring was completely closed. The knot was placed underneath peritoneally.

Figure 2 Laparoscopic percutaneous extraperitoneal closure procedure. (A) A homemade needle with sutures was inserted into the anterior abdominal wall extraperitoneal. (B) The internal half circle was begun extraperitoneally from the internal edge to the external edge around the internal inguinal ring, peritoneum was punctured and the suture was released into the abdominal cavity. (C) The needle was withdrawn to the roof of the ring under the peritoneum but the suture was remained. (D) The needle was advanced along the external side of the ring and got into the abdominal cavity through the same puncture hole, the auxiliary suture (green) was pulled on one side of the needle to form a loop, and the end of the closure suture (red) was grasped to pass through the loop. (E) The closure suture was placed around the inguinal ring under the peritoneum. The lower panel was the schematic drawing of the upper panel. The red line was the closure suture and the green line was the auxiliary suture.

Through the same 1.0-mm stab incision, a homemade needle with the same sutures was inserted into the anterior abdominal wall about 3-mm far from the initial complete circuit ligation (Figure 3A). Similarly, the 2-0 suture was placed around the inguinal ring under the peritoneum (Figure 3B). Both ends were passed through the same puncture point but via different tunnels. The 2-0 suture was tied tightly extracorporeally, and the knot was placed underneath peritoneally. The second knot was about 3-mm far from the first knot. When asymptomatic CPPV was observed, LPEC repair was performed.

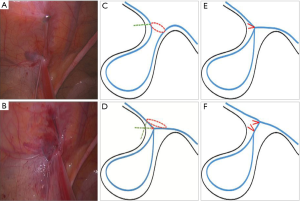

Figure 3 Peritoneum reinforcement of the Laparoscopic percutaneous extraperitoneal closure (LPEC) repair. (A) A homemade needle with the same sutures was inserted into the anterior abdominal wall extraperitoneal about 3 mm far from the initial complete circuit ligation. (B) The second suture was placed around the inguinal ring under the peritoneum, circuited and demixed suturing twice around the internal inguinal ring to reinforce peritoneum. (C,E) The schematic drawing of (A): (C) the green dotted line: a homemade needle with sutures was inserted into the anterior abdominal wall. The red dotted line: closure of the internal ring; (E) the red line: the knot was placed underneath peritoneally. (D,F) The schematic drawing of (B): (D) the two green dotted lines: a homemade needle with sutures was inserted again into the anterior abdominal wall through the same puncture point but via different tunnels. The red dotted line: closure of the internal ring for peritoneum reinforcement; (F) the red lines: the second knot was placed underneath peritoneally about 3 mm far from the first knot.

Statistical analysis

Measurement data and enumeration data were presented as median and n (%), respectively. Statistical analyses were done using the SPSS software (version 22.0).

Results

All patients underwent LPECPR without conversion. They were 1,603 males and 415 females. Their median age was 3.27 years (3 months–15 years). The median operation time was 19 min (15–35 min) and 13 min (10–20 min) for males and females, and 14 min (7–18 min) and 20 min (10–35 min) for unilateral and bilateral inguinal hernias. There were no intraoperative complications. All patients were discharged within 24 hours after the operation. All patients received regular follow-up examinations, which included physical examination or ultrasonography. The median follow-up period was 13.4 months (6–36 months). There were no postoperative complications, such as knot reactions, hydrocele formation, testicular atrophy and pain, except 3 recurrences (3/2,018, 0.15%). In the three recurrent patients, two school-age boys participated in strenuous exercise after surgery, including one 7-year-old boy, who began to practice taekwondo 3 months after surgery (at least once a week), and hernia recurred 1 month later. Another 9-year-old boy, who began to participate in table tennis practice (twice a week) 2 months after surgery, developed a hernia recurrence 3 months later. The last case, a 2-year-old boy, had a respiratory infection 3 months after surgery and persistent cough for 1 month, and a hernia recurrence. All 3 recurrent patients with recurrence underwent the reoperation with the same approach (LPECPR). All of them were followed up for 3 years and found no recurrence.

Discussion

Pediatric inguinal hernia repair is a common surgical procedure. Laparoscopic pediatric inguinal hernia repair has become an alternative procedure to open herniotomy (1). Laparoscopic pediatric inguinal hernia repair has been performed with several methods and techniques, including intracorporeal suturing and extracorporeal closure of the internal ring (4). Among all the methods and techniques, LPEC repair is one of mature technology of them (7,8). Compared with conventional open herniotomy, LPEC repair has many advantages such as repair of CPPV, low rate of recurrence, reduction of operative time and good result of cosmesis (7-9). LPEC has rare complications, but recurrence still existed.

Recurrence is the most important problem in patients because they should be required reoperation. The incidence of recurrence has been reported differ. Various risk factors of recurrence have been reported: patient’s sex and age, surgeon’s experience, use of absorbable sutures, loosening of the knot and leaving a peritoneal gap in the encircling suture (10-13). Lee et al. hypothesized that high stretchiness around the internal ring and increased tension on the suture were risk factors of recurrence (14). Hayashi et al. suggested that torn peritoneum and use of single ligation were two preventable factors for recurrence (15). Complete circuit ligation of the hernia sac is important to prevent recurrence.

Experts are looking for a better method to reduce recurrence (16-18). Therefore, we modified the LPEC technique by reinforce peritoneum with extraperitoneal double complete circuit ligation. LPECPR is circuited and demixed suturing twice around the internal inguinal ring to reinforce peritoneum. In this technique, peritoneal reinforcement is performed by stagger closing the internal inguinal ring twice in different planes (Figure 3C,D). Because the planes are not at the same level, the forces on the two closed planes are not in the same direction (Figure 3E,F). This procedure provides two lines of defense for the closure of the peritoneum, it can reduce or decompose the tension around the internal inguinal ring caused by abdominal pressure. In addition, peritoneum reinforcement can reduce the tension of the first suture and prevent avulsion of the peritoneum, especially in patients with brittleness or edema peritoneum. In the present study, 2,018 patients underwent LPECPR technology at a recurrence rate of 0.15% (3/2,018), lower than the recurrence rate of Miyake et al. (0.27%, 3/1,109), who also had over 1,000 cases of pediatric hernia LPEC repair surgery experience (7). The low recurrence rate may be related to the peritoneum reinforcement of the LPECPR.

In the present series, we did not have postoperative complications such as scrotal edema, suture site abscess, umbilical hernia, iatrogenic cryptorchidism, or testicular atrophy, except for a very small recurrence. Interestingly, recurrence was seen only in males and within half a year after surgery in the three recurrent patients, and they had different risk factors respectively. Two school-age boys participated in strenuous exercise after surgery, with violent pulling and increased abdominal pressure. The last case, another infant had increased abdominal pressure for a long time after surgery. We found that one of the common features of these patients with recurrence was that they all had increased abdominal pressure and/or violent pull as risk factors shortly after surgery (13,19). These recurrent patients were followed up for another 3 years after reoperation. After 1 year of reoperation, the children continued their original training (table tennis practice and taekwondo practice) with no recurrence. Therefore, early surgery is recommended for symptomatic patient with inguinal hernia and risk factors such as increased abdominal pressure should be avoided after surgery.

The homemade hernia needle method we describe is simple, economical, and even free. The unit with laparoscopic equipment can perform such operation with the homemade hernia needle. For pediatric surgeons who are not experienced in this technique, we recommend as follows: a two-port technique was initially used, with one port for laparoscopy and the other for grasping forceps, which is similar to that described previously. Grasping forceps not only makes intraperitoneal handling easier, but also helps the needle pass through the preperitoneal space without skipping over any area where sutures are placed so that the inguinal ring is totally encircled. The key and difficulty of this technique is that the hernia needle avoids the vas deferens and the blood vessels and passes through the preperitoneal space to ensure that the vas deferens or spermatic vessels are not ligated.

Conclusions

In conclusion, the most technical refinements and modifications of this modified technique can achieve a lower recurrence rate. In addition, this operation is simple, less complications, and cost-effective (it can be homemade surgical instrument at no cost). LPECPR is an efficient and safe method for pediatric inguinal hernia.

Acknowledgments

Funding: This study was supported by grants from the National Natural Science Foundation of China (grant No. 81801432), the Natural Science Foundation of Guangdong Province of China (grant No. 2018A030307045), the Postdoctoral Science Foundation of China (grant No. 2019M652990) and the “Dengfeng Project” for the construction of high-level hospitals in Guangdong Province-the First Affiliated Hospital of Shantou University Medical College Supporting Funding (grant No. [2019] 70).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/tp-21-25

Data Sharing Statement: Available at http://dx.doi.org/10.21037/ tp-21-25

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/tp-21-25). All authors received payments from the National Natural Science Foundation of China, the Natural Science Foundation of Guangdong Province of China, the Postdoctoral Science Foundation of China, and the “Dengfeng Project” for the construction of high-level hospitals in Guangdong Province-the First Affiliated Hospital of Shantou University Medical College Supporting Funding.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee at the First Affiliated Hospital of Shantou University Medicine College (B-2021-021) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
