Clinical application of fractional exhaled nitric oxide and nasal nitric oxide levels for the assess eosinophilic inflammation of allergic rhinitis among children

Introduction

Allergic rhinitis is a global health problem and affects people of all ages. Moreover, the prevalence of this condition has increased annually. Approximately 40% of children present with allergic rhinitis worldwide (1). In China, the proportion of individuals with allergic rhinitis increased from 11.1% to 17.7% within the last six years (2).Questionnaires are widely used to assess the prevalence of allergic rhinitis. However, it they may overestimate the prevalence of allergic rhinitis (3). The morbidity associated with allergic rhinitis is significantly higher in major cities. For example, in Beijing and Shanghai the percentages of people with allergic rhinitis were 20.2% and 23.0% in 2011, respectively (2). Due to worsening air pollution, and changes in lifestyle habits, the morbidity of nasal inflammatory diseases has been trending upward (4).

Allergic rhinitis is an inflammatory response caused by immunoglobulin E (IgE)-mediated sensitivity to environmental allergens (5). Nasally inhaled sensitizing allergens promote the synthesis of IgE and strongly activate the activation of mast cells, eosinophils (EOS), and T-helper type 2 cells. Approximately 19–38% of individuals with allergic rhinitis have concurrent asthma (6). The main clinical symptoms include a runny nose, rhinorrhea, nasal congestion, and itching of the nose and eyes. Depending on symptom severity, allergic rhinitis can exert similarly severe effects on patients’ daily lives and sleep habits.

Traditional methods of assessing the clinical symptoms of allergic rhinitis include the skin prick test and detection of serum allergens (7). A visual analog scale can be used to effectively assess the symptom severity (8); however, some study point out that allergen test is invasive and may incite fear in children. Further, the high cost and long inspection time increase the burden of these tests (9). Moreover, allergic rhinitis can be difficult to distinguish from other common diseases among young children (10).

Measurement of nitric oxide (NO) concentrations in exhaled breath is a useful method for detecting the severity of airway inflammation. NO is generated via three NO synthases and is expressed in epithelial and inflammatory cells (10). In the respiratory system, NO acts as a messenger to transform intercellular information and regulate the dilation of the bronchus and blood vessels. Fractional exhaled nitric oxide (FeNO) and nasal nitric oxide (nNO) levels correspond with inflammation in the lower and upper airways and eosinophilic infiltration, respectively (11). This study examined the use of exhaled NO levels for the assess the levels of eosinophilic of allergic rhinitis in children. We present the following article in accordance with the TREND reporting checklist (available at http://dx.doi.org/10.21037/tp-20-314).

Methods

Study design

This study was a retrospective analysis and was designed to assess the application of FeNO and nNO levels for assess eosinophilic inflammation of allergic rhinitis. Symptom severity in children was assessed via questionnaire. Allergen detection, and blood tests present the degree of allergic rhinitis. FeNO and nNO levels were measured before and after treatment of rhinitis. We then analyzed the relevance of various indicators and the FeNO and nNO levels. In addition, we compared each of FeNO and nNO levels before and after treatment based on guideline and compared the degree of changes in the patients’ symptoms via the questionnaire before and after the treatment. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics committee from the First Affiliated Hospital of Guangzhou Medical University (GYFYY-2016-73) and individual consent for this retrospective analysis was waived.

Participants

The current study included children aged 3–12 years and diagnosed with allergic rhinitis from The First Affiliated Hospital of Guangzhou Medical University. In total, 42 males and 19 females were recruited from November 2019 to March 2020. All the children had been diagnosed with allergic rhinitis by an experienced clinician. The diagnostic criteria were based on standard treatment guidelines (12). Patients who were sensitive to at least one kind of allergen and who had allergic symptoms that lasted >12 months were included. Each child received treatment according to guideline. We excluded patients if: (I) they had concomitant asthma, rhinosinusitis, or nasal polyps; (II) they had cardiorespiratory-related diseases; (III) they had a respiratory infection before treatment; or if (IV) they previously underwent nasal surgery.

Questionnaire administration

The International Study of Asthma and Allergies in Childhood (ISAAC) is a useful tool for the assessment of allergic diseases (13). We designed our questionnaire based on this research. The questionnaire was divided into three sections: (I) basic personal information, including name, sex, age, and emergency contact number; (II) history of allergic rhinitis treatment and condition of family members with rhinitis; (III) frequency of symptoms, such as sneezing, rhinorrhea, nasal congestion, and itching of the nose or eyes, as well as the effects of symptoms on sleep, work, and activities of daily living. All levels of symptoms were divided into 10 scales. We considered each child's symptom score as the symptom sum score and the daily influence score as the daily activities sum scores. The parents or the children themselves completed the questionnaires independently.

Allergen detection and blood test

The number of eosinophils was measured via a blood test. The Phadia 1000 was used to detect allergen sensitization (Thermo Fisher Scientific Inc., USA), based on specific IgE and serum total IgE levels. IgE levels specific to allergens, including house dust mites, dog dander, egg whites, cow milk, wheat, shrimp, the German cockroach, and the Alternaria alter were measured.

FeNO, nNO levels and Montelukast treatment

During the measurement of FeNO levels, children used a filter to cover their mouths and expired into the device. During expiration, the children were asked to avoid inhaling and instead exhale gently for at least six seconds. There have three-year-old children we via moisture to measure his FeNO values based on the operation guide and other children were all measured by above method.

For detection of nNO, the children held a filter and blocked one nostril. The other nostril was open throughout the whole measurement. Each child was asked to inhale gas through the filter and then produce a whistle sound for at least ten seconds, without stopping.

Before the examination, we have excluded the children who have been used bronchodilators and other drugs that affect the airway caliber three months before examination. All children were asked not to exercise and fast for at least one hour, test in the same period and in a comfortable posture. Ensured there were no other environment factors may influence the measurement. During measurement of both FeNO and nNO, we made sure that the filter fit snuggly against the child’s mouth or nostril without air leakage. The FeNO and nNO levels were measured using the Nano Coulomb Breath Analyzer (Sunvou-CA2122).

Every participant received personalized treatment under the diagnosis of clinician. Every patient had received the treatment with loratadine and lasts for three weeks. All the patients do not experience discomfort and completed the treatment and detect FeNO and nNO levels before and after treatment.

Statistical analysis

Data analysis was performed using the Statistical Package for the Social Sciences software 24.0 (SPSS, IBM Corp., Armonk, NY, USA). Normally distributed data are presented as mean ± standard deviation. The Spearman models were used to evaluate whether a correlation existed between the FeNO and nNO levels and the other detection parameters. P values <0.05 were considered statistically significant. GraphPad Prism 8 was used to create the relationship diagram in our study.

Results

We found no significant association between symptoms, as judged by the questionnaire, and FeNO and nNO levels

This study focused on patients aged 3–12 years with allergic rhinitis. Sixty-one patient’s characteristics, including symptom scores, and the effects of symptoms on each child’s daily activities are summarized in Table 1. Sixty-one children with allergic rhinitis completed both the questionnaire and the FeNO and nNO tests. Both the FeNO levels and the symptoms sum scores were normally distributed as determined by the K-S normality test. We analyzed the correlation between symptom score and FeNO and nNO levels and found no significant correlation (r=0.028, P=0.834; r=−0.018, P=0.893). Moreover, there have the positive correlation between nNO and the age (r=0.434, P=0.001). All values of questionnaire, FeNO and nNO were tested and analyzed according to the guidelines (13-15). Reference value of FeNO: 5–25 ppb; nNO: 250–500 ppb.

Table 1 Patients’ characteristics and rhinitis control scores
Full table

Association between FeNO and nNO levels

The FeNO and nNO tests were used to detect the concentration of NO in the airway. FeNO and nNO levels can indicate inflammation at different locations. That is, the FeNO level reflects inflammation in the lower airway, and the nNO level indicates inflammation in the upper airway. We observed a significant correlation between the FeNO and nNO levels (P<0.001) (Figure 1). However, when we compared the association between FeNO and nNO levels based on the EOS levels, which was <0.3 (10⁹/L), we found no significant correlation between the FeNO and nNO levels (r=0.241, P=0.306).

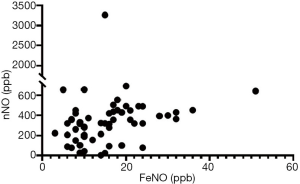

Figure 1 Correlation between FeNO and nNO levels. FeNO, fractional exhaled nitric oxide; nNO, nasal nitric oxide.

Correlation between various parameters and changes in FeNO and nNO levels before and after the treatment of allergic rhinitis

The EOS and total IgE levels are indices that are commonly used to diagnose allergic rhinitis in clinical settings. Both of FeNO and nNO values were strongly associated with total IgE (Figure 2A) and EOS (Figure 2B) values (r=0.414, P=0.001; r=0.293, P=0.024 and r=0.292, P=0.025; r=0.293, P=0.025). Figure 2C,D show the differences in FeNO and nNO levels before and after the treatment of children who completed the treatment. Via compared the symptoms sum scores and daily actives sum scores before and after the treatment from the questionnaire, we found that no matter symptoms sum scores, or daily activities sum scores were become lower after treatment. However, both of FeNO and nNO values after treatment were higher than before treatment. Besides, we tested FeNO and nNO for each patient who completed the treatment and compared whether the two detection indicators were relevant before and after treatment, respectively. Each of FeNO and nNO present significant correlation between the value of before and after treatment (r=0.612, P<0.001; r=0.601, P<0.001). The values of sum scores afterment were present in Table 1.

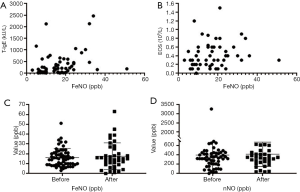

Figure 2 The relationship between FeNO and factors and the change of FeNO and nNO. Correlation between FeNO and (A) total IgE levels and (B) EOS values. The correlations between FeNO and nNO levels before and after treatment are indicated by (C) and (D). FeNO, fractional exhaled nitric oxide; total IgE, total immunoglobulin E; EOS, eosinophils nNO, nasal nitric oxide.

FeNO or nNO level based on the different EOS levels

Based on this result, we further evaluated the association between various parameters and FeNO and nNO levels at different EOS values. We divided patients in two group based on the cut line of EOS =0.3 (10⁹/L). When the EOS level was ≥0.3 (10⁹/L), the FeNO level was positively correlated with nNO levels (r=0.431, P=0.006). However, the FeNO level was not correlated to any parameter when the EOS level was <0.3 (10⁹/L). The correlations between various parameters based on different levels of EOS were presented in Figure 3.

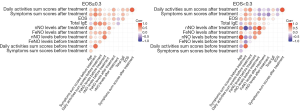

Figure 3 Correlation of various parameters based on different levels of EOS. FeNO, fractional exhaled nitric oxide; total IgE, total immunoglobulin E; EOS, eosinophils nNO, nasal nitric oxide.

Discussion

The measurement of NO concentrations during expiration is not part of routine clinical practice. This may be because very few studies have examined its use, and there is no consensus as to its clinical measurement (16). Some factors, such as age and sex, can affect FeNO and nNO levels (17). In our study, the nNO level was positively associated with age. However, the relationship between FeNO level and age was not significant (FeNO level: P=0.164; nNO level: P=0.001). This result was consistent with that of other studies (3,17). In our analysis, no significant differences were observed between male and female participants. But some studies have produced different results. Interestingly, FeNO values were significantly higher in males compared to females (10,18).

Assessments of symptom severity are commonly used in clinical settings. However, the symptom sum scores were not significantly correlated with FeNO and nNO levels (P=0.834; P=0.893). These findings agreed with a previous study (19). That is, no association was observed between the nNO level and rhinitis symptoms because the manifestations of inflammatory infiltration do not present immediately. Therefore, FeNO or nNO levels are not reliable means of reflect the discomfort levels of allergic rhinitis.

The pathogenic mechanism of allergic rhinitis is airway inflammation with eosinophilic infiltration caused by the allergens. Because of TH2 lymphocytes and cytokines, eosinophils and mast cells invade the nasal mucosa (20).Therefore, the release of NO synthase from the epithelial cells produces a higher level of NO in the upper and lower respiratory tracts. Serum EOS and total IgE levels are useful indices for diagnosing allergic rhinitis. In summary, FeNO and nNO levels had a significant positive correlation (r=0.454, P<0.001). Moreover, FeNO and level was positively correlated with EOS and total IgE levels (r=0.293, P=0.024; r=0.414, P=0.001). But, when the data were classified according to EOS level, which was lower than 0.3 (10⁹/L), the correlation will become lack of statistical significance. From this we can see, high concentration of NO can reflect airway inflammation. Thus, the concentration of NO can be a helpful indicate to reflect the high levels of eosinophils or total IgE and further assess the severity of allergic rhinitis. The reason could be because common allergens, including house dust, are small enough to reach the airways and cause higher levels of total IgE (21). Besides, we found out that total IgE can be one of the impact factors which make the level of FeNO and nNO change. A study out of China produced a similar result as our result (17).

Studies on use of nNO in clinical settings have emerged in recent years. nNO levels reflect the concentration of NO in the upper airways. However, there is no consensus regarding what levels of nNO can be used for clinical diagnosis (16). Several studies have used this method to compare nNO levels between patients with allergic rhinitis and healthy controls. They found that, in children with allergic rhinitis, nNO levels were significantly higher than those of healthy control children (9,16,22). Based on this result, we sought to determine whether there was a direct association between nNO and EOS or total IgE levels. Interesting, we found the correlation was observed between nNO and both EOS and total IgE, which result were similar than FeNO. (r=0.291, P=0.025; r=0.292, P=0.025).

Several authors support the use of FeNO or nNO levels for measuring treatment effects in clinical settings, their result point out that both levels will decrease after treatment (23,24). Nevertheless, when we compared FeNO and nNO values before and after treatment, we get different result. Our results showed that both FeNO and nNO levels were increase after treatment, even if the symptoms sum scores after treatment were significantly lower than before treatment via questionnaire. A review article from Europe summarize that FeNO levels do not decrease after treatment may have two possible reason. First, because the reduced diffusion capacity, anti-inflammatory drugs do not work efficiently. Second, airway remodeling may also reflect nNO levels do not decreased after treatment (25). Therefore, when evaluating the therapeutic effect by NO level, we tend to consider not only the change in FeNO and nNO, but also combine other factor, such as the effects of NO production or airway remodeling.

Finally, there still have several limitations in our study. First, in view of that we only analysis 61 patients, the small sample size may limit our description of whether FeNO and nNO were related to total IgE and EOS, respectively. Second, due to each patient has a different performance of the treatment effect, we cannot integrally compare whether there has a significant change of the concentration of NO before and after the treatment.

Conclusions

In conclusion, both FeNO and nNO can reflect the levels of eosinophilic inflammation. When evaluating the effect of FeNO or nNO, it is recommended to combine other influencing factors instead of simply comparing numerical changes. Moreover, the combined use of FeNO and nNO levels is a less invasive and potentially more tolerable and convenient method for the clinical assessment of the inflammation of allergic rhinitis.
