The feasibility of ultrasound Graf method in screening infants and young children with congenital hip dysplasia and follow-up of treatment effect

Introduction

Congenital hip dysplasia is one of the major clinical congenital malformations, and it has a high disability rate for infants and young children (1). Early screening and diagnosis after birth, and performing effective treatment in a timely manner is key to reducing the disability rate and improving the prognosis of infants and young children (2). Imaging methods are currently the main clinical auxiliary methods for infants and young children with congenital hip dysplasia, including X-ray, ultrasound, and others. However, X-rays are limited in infant disease screening due to insufficient resolution and radiation (3). Ultrasonography has been widely used and popularized in the early screening of infant diseases due to its advantages including easy operation, repeatability, and no radiation damage (4). Based on this, this study analyzed the value of ultrasound Graf method in the screening and follow-up of treatment effects in infants and young children with congenital hip dysplasia, so as to provide a reliable basis for clinical diagnosis and treatment. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/tp-21-137).

Methods

General information

A total of 1,313 infants and young children with clinically suspected congenital hip dysplasia in our hospital from December 2016 to January 2018 were selected as the research participants. There were 660 males and 653 females, aged 28 days to 6 months, with an average of 3.25±0.59 months. The inclusion criteria were as follows: (I) aged ≤8 months; (II) patients with abnormal hip joint manifestations such as unequal length of lower limbs, limited hip joint abduction, and asymmetry of thigh skin patterns; (III) patients with complete clinical data; (IV) the family members of the participants were informed and signed an informed consent form. The exclusion criteria were as follows: (I) patients with multiple joint spasm and cerebral palsy; (II) patients with heart, liver, and kidney dysfunction; (III) patients with hematopoietic and immune system diseases; (IV) patients with other malignant tumors; (V) patients with hip joint dislocation caused by suppurative arthritis of the hip. This study was approved by the Third Affiliated Hospital of Guangzhou Medical University (2020-134). The study was conducted were in accordance with the Declaration of Helsinki (as revised in 2013). And informed consent was taken from all individual participants.

Detection method

The ultrasound Graf method was performed with the inspection instrument of GE ultrasonic diagnostic equipment (GE, Chicago, IL, USA), using a linear array probe of 9.0–15.0 MHz. The participants were checked while sleeping or in a quiet state, in the lateral position, with the lower limbs naturally bent and slightly internally rotated, and supported by a parent or assistant. The ultrasound probe was placed on the outer side of the greater trochanter of the femur, parallel to the long axis of the body, then the coronal surface of the femoral head and acetabulum were scanned, and a multi-section scan was performed to show the ischium of the inner femoral head. After acquiring the standard coronal image of the hip joint, the images were locked. The standard 7 images included the osteochondral interface, synovial reentry point, labrum, iliac plane, ilium turning point, ilium lowest point, and bony acetabular roof. The images were measured with the measuring tool of the instrument according to the following steps. The first step was to draw three measurement lines: the baseline (parallel or tangent to the iliac body), bony acetabular line (taking the lowest point of the iliac bone as the axis, and tangent to the bony acetabulum) and cartilaginous acetabulum line (the line between the turning point of the iliac bone and the midpoint of the labrum). The angle between the baseline and the bony acetabular line was defined as α angle, and the angle between the baseline and the cartilaginous acetabular line was defined as β angle. The diagnostic criteria (5) are shown in Table 1.

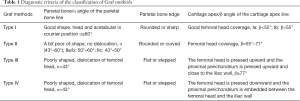

Table 1 Diagnostic criteria of the classification of Graf methods
Full table

Observation indicators

The results of ultrasound detection were analyzed by two or more experienced professional physicians to observe the shape of the participants’ acetabulum and the measurement values of α and β angles. The measurement results were averaged as the final result. Then, the ultrasound Graf method was used to analyze the development of the participants’ hips and the distribution of congenital hip dysplasia, as well as follow up the treatment effect.

Statistical methods

In this study, data were analyzed using SPSS 22.0 software (IBM Corp., Armonk, NY, USA). The measurement data were described by the mean ± standard deviation (x¯±s), and analyzed using t-test. The difference was statistically significant when α=0.05.

Results

Results of ultrasound Graf screening

Among the 1,313 suspected cases with congenital hip dysplasia, there were 1,234 cases with normal hips (type I, see Figure 1A), accounting for 93.98%; 31 cases of immature hip joint hip (type IIa, see Figure 1B), accounting for 2.36%; and 48 cases of abnormal hip joints (type IIb–IV, see Figure 1C,D,E), accounting for 3.73%. The positive rate of congenital hip dysplasia examination was 6.02% (79/1,313), including 14 cases with bilateral congenital hip dysplasia, 67 cases with congenital hip dysplasia on the left side, and 26 cases with congenital hip dysplasia on the right side (Table 2).

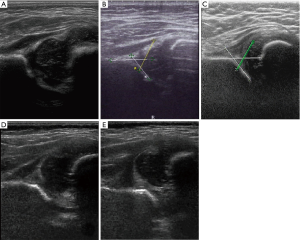

Figure 1 Ultrasonic images of different hip joints. (A) Type I hip joint. The ultrasound image showed that the acetabulum was in good shape and the parietal bone edge was slightly rounded and blunt; (B) Type IIa/b hip joint. The ultrasound image showed that the acetabulum had a slightly poor shape without dislocation, and the parietal bone edge was curved; (C) Type IIc hip joint. The ultrasound image showed that the acetabulum was poorly shaped, not dislocated, and the parietal bone edge was flat; (D) Type III hip joint. The ultrasound image showed that the acetabulum was poorly shaped, dislocated, and the femoral head was compressed upward; (E) Type IV hip joint. The ultrasound image showed that the acetabulum was poorly shaped, dislocated, the femoral head was pressed downward, and the proximal perichondrium was embedded between the femoral head and the ilium wall.

Table 2 Results of ultrasound Graf screening
Full table

Comparison of α and β angles of normal hip joint and congenital hip dysplasia by ultrasound Graf method

The α angle of cases with congenital hip dysplasia was significantly lower than that of normal cases, and the β angle was significantly higher than that of normal cases. The differences between the groups were statistically significant (P<0.05, Table 3).

Table 3 Comparison of α and β angles of normal hip joint and congenital hip dysplasia by ultrasound Graf method (x¯±s)
Full table

Treatment of 79 cases

Among 79 cases with congenital hip dysplasia, 24 participants (30.38%) were treated by hip abduction exercises; 46 (58.23%) were treated by Pavlik sling; and 9 (11.39%) were treated by closed reduction and plaster fixation under general anesthesia (Table 4).

Table 4 Treatment of 79 children [n (%)]
Full table

Follow-up results of ultrasound Graf method

Participants undergoing hip abduction exercises and Pavlik sling treatment underwent color Doppler ultrasound review every 2–3 weeks until they returned to normal or had been treated more than half a year; cases undergoing closed reduction and plaster fixation underwent color Doppler ultrasound review every 3–6 months for a duration of 4 months to 3 years. The deadline for follow-up was January 2021. All participants completed follow-up with a follow-up rate of 100%. Among 24 the participants with hip abduction exercises, 22 (91.67%) returned to normal, and the remaining 2 participants returned to normal after Pavlik sling treatment. Among the 46 participants who underwent Pavlik sling treatment, 42 (91.30%) returned to normal afterwards, and the remaining 4 participants returned to normal after closed reduction and plaster fixation. And there were 9 cases of plaster fixation after closed reduction, and all of them returned to normal.

Analysis of ultrasonic images

The ultrasound images of different types of hip joint were different and shown in Figure 1.

Discussion

Congenital hip dysplasia is a common limb deformity in infants and young children, ranking first in limb deformity diseases, with an incidence of about 0.15–0.20% (6). This study screened infants and young children with positive clinical signs, and the results showed that the positive rate of ultrasound examination was 6.02%, slightly higher than that in the previous study (7). The possible reason of the increase may be related to the maturity of sonographers’ operating technology, development of equipment, and spread of diseases in recent years. In addition to ultrasound, clinical physical examination, X-ray film, and magnetic resonance imaging (MRI) are the other main methods for clinical diagnosis of hip joint diseases in infants and young children (8). Although low-dose CT reduces the radiation dose, the image quality of infants is easy to be poor due to the age problem, and the radiation dose still exists. Although MRI has high accuracy, the scanning time is too long and the price is too expensive, so it is not suitable for preliminary diagnosis. However, compared with plain radiographs and MRI, hip ultrasound examination has the advantages of being effective, non-invasive, and low-cost, especially for infants whose hip joints are mainly cartilage, therefore the results of hip ultrasound examination are more reliable (9). Ultrasound Graf method can be used to evaluate development of the hip joint by analyzing the ultrasound images of the hip joint and quantifying the shape of the acetabulum with α and β angles (10). The results of this study showed that there was a significant difference in α and β angles between the cases with congenital acetabular dysplasia and those with normal hip joints by ultrasound Graf method, which is consistent with the reports of Fooladi (11), suggesting that the ultrasound Graf method can be used as one of the methods to screen congenital acetabular abnormalities, with strong operability and high standardization.

Related international reports have shown that the incidence of children with congenital hip dysplasia differs according to race, region, and gender. Compared with those of eastern and southeast Asian heritage, the incidence among Caucasians is lower: the incidence in China is about 0.1–0.6%, and the incidence in the United States is about 0.1%. Besides, the incidence of congenital hip dysplasia is higher on the left side than on the right (12,13). Among participants with congenital hip dysplasia in this study, the left side was the most commonly affected, with an incidence of 6.02%, which was basically consistent with the reports of the above-mentioned literatures. If patients with abnormal hip joints are not treated in time, they may develop severe osteoarthritis, claudication, or other serious joint dysfunction, which can even cause lifelong deformities. It is believed that timely diagnosis and treatment are the keys to improving the prognosis of patients with congenital hip dysplasia (14).

Most immature hip cases with an α angle of 55°–60° can spontaneously develop to maturity during follow-up. Therefore, the guardians of such children can be educated to perform straddling hugs or hip abduction exercises, and eventually most of these children will return to normal during the course of development (15,16). In the follow-up study, 91.67% of the 24 participants treated with hip abduction exercises returned to normal, indicating that the treatment effect is good. Patients treated with this method need to be re-examined after 2–3 weeks. If an ultrasound result shows that there is no significant change in the α angle or the clinical symptoms have not been improved, they a Pavlik sling or other treatments should be applied. Pavlik sling therapy is suitable for all types of patients with congenital hip dysplasia within 6 months (17). Patients treated with Pavlik sling therapy should undergo regular ultrasound follow-up once every 2 to 3 weeks. If the ultrasound result reveals a prompt reset after 3 weeks, the treatment should be continued for 2 to 4 months. If ultrasound and clinical examination shows no reset after 3 weeks, Pavlik sling treatment should be discontinued and other therapies applied (18). In this study, among the 46 children who underwent Pavlik sling treatment, ultrasound follow-up results showed that the effective rate of treatment was 91.30%. Plaster fixation after closed reduction and open reduction therapies are suitable for cases who have failed to be cured after the above methods. In the clinical selection of treatment therapies, comprehensive evaluation should be performed based on the age of the patient, and development of the femoral head and acetabulum. The role of ultrasound examination has shown to be important in evaluating the development of the femoral head and acetabulum (19). In addition, ultrasound examination has a good evaluation value in the treatment of congenital hip dysplasia, and can effectively guide the choice of clinical treatment options. However, with the deepening of ultrasound screening, there are still some problems: Firstly, it is still controversial whether ultrasound screening should be universal or only performed for cases with positive clinical signs of hip dysplasia (20); Secondly, the shape of the acetabulum and the measured alpha and beta angles are subject to some subjective factors, and the results may be biased; Thirdly, as mild congenital dysplasia of the hip involves the phenomenon of spontaneous development and maturity, especially for children with an α angle of 55°–60°, the risk of ultrasound overuse for diagnosis and subsequent waste of medical resources and whether there are false negative clinical signs and the value of ultrasound in the early diagnosis of false negative clinical signs of hip dysplasia remain to be further assessed.

In summary, the ultrasound Graf method can be used as the first choice for screening infants and young children with congenital hip dysplasia, it can also be used for follow-up observation of clinical treatment effects, and has high application value in clinic.
