Improving renal phenotype and evolving extra-renal features of 17q12 deletion encompassing the HNF1B gene

Introduction

Hyperechogenicity of fetal kidney parenchyma might be normal during certain stages of nephrogenesis but at other times suggestive of congenital anomalies of the kidney and urinary tract (CAKUT) or genetic cystic kidney disease, such as autosomal dominant polycystic kidney disease (ADPKD), autosomal recessive polycystic kidney disease (ARPKD), nephronophthisis/medullary cystic disease complex, overgrowth syndromes, and congenital nephrotic syndrome (1-4). The past 2 decades have witnessed the identification of more than 40 genes critically involved in nephrogenesis and more than 95 genes associated with cystic kidney disease (5-8). Indeed, causative mutations in one of these genes have been identified in up to 17–20% of CAKUT and 50–70% of cystic (hyperechogenic) kidneys in pediatric (including fetal) cohorts (2,7-10). Among these, HNF1B deletion/intragenic mutations are the ones most commonly identified (2,6-12).

HNF1B is a transcription factor that regulates expression of multiple genes crucial to morphogenesis of the kidneys, genitalia, pancreas, liver, thymus, and gut (8,9,13-16). HNF1B loss-of-function mutations were first described as the etiological cause of renal cysts and diabetes (MODY5 type) syndrome (RCAD) (8,9,13-15).

HNF1B nephropathy refers to the wide spectrum of renal abnormalities induced by microdeletions at the 17q12 locus. It extends from renal parenchymal hyperechogenicity due to microcystic dysplasia through overt cystic changes and up to different types of CAKUT, among which multicystic dysplastic kidney (MCDK) and unilateral renal agenesis (URA) are the most prominent (10,13,15-21). Variable onsets of extra-renal manifestations of this genetic abnormality have also been described (13-16). The postnatal renal and extra-renal courses in cases of HNF1B-associated fetal sonographic abnormalities remain unclear.

We present our experience with 6 cases, including one aborted fetus and 5 patients who were followed in our clinic subsequent to prenatal diagnosis of abnormal fetal renal parenchyma and who were eventually diagnosed with HNF1B microdeletion. These descriptions highlight previously unreported features of the evolving phenotypic spectrum in patients carrying this mutation.

We present the following article in accordance with STROBE reporting checklist (available at https://dx.doi.org/10.21037/tp-21-386).

Methods

Study population

Patients and fetuses identified as carrying the HNF1B microdeletion in our institute during 2009–2017.

Sample collection and work-up

The chromosomal microarray analysis (CMA) that was performed in all patients and fetuses employed DNA from amniotic fluid prenatally as well as DNA extracted from blood postnatally. CMA was performed with the CytoScan 750K array (Affymetrix, Santa Clara, CA, USA), which is composed of 550,000 nonpolymorphic copy number variant probes and more than 200,000 single-nucleotide polymorphism probes, with an average resolution of 100 Kb. Analysis was performed with ChAS software from Affymetrix. Genomic coordinates were evaluated in accordance with genome build GRCh37/hg19. Analyses were according to the standards and guidelines of the American College of Genetics and Genomics for constitutional cytogenomic microarray analysis. Clinical prenatal and postnatal data including latest follow-up of the study cohort were recorded and analyzed. Fetal and postnatal kidney sonographic echogenicity was defined as normal or hyperechogenic by comparison to adjacent liver and/or spleen texture according to accepted age-adjusted standards (4-7,22).

Statistical analysis

The small number of participants in this cohort study precluded formal statistical analysis.

Ethical statement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013) and was approved by the Institutional Ethics Review Board of Tel Aviv Sourasky Medical Center Hospital (registration No. 0498-14-TLV), and individual consent for this retrospective analysis was waived.

Results

Patient characteristics

Main findings presented in Table 1.

Patient 1

Patient 1 was a 4.5-year-old normally developed girl who presented with a partial tonic-clonic seizure disorder. The clinical examination disclosed no dysmorphic features, cutaneous stigmata, or neurological deficits. Her blood test results revealed hypomagnesemia (serum magnesium 1.4 mg%; normal lab range 1.8–2.5 mg%), slightly elevated uric acid: 5.8 mg% normal up to 5.6 mg%), and slightly elevated ALT (48 IU/L; normal <35 IU/L). The serum creatinine, thyroid, and parathyroid test results were normal. Her urinalysis was normal, but she was found to have magnesuria (FEMg 7–10%; normal <5%, and <2–4% with a depressed serum magnesium level: <1.8 mg%) (23) without hypercalciuria. A renal ultrasound showed normal-size kidneys (7.4–7.6 cm long axis) (24), with normal echogenicity. An electroencephalogram demonstrated rolandic-type epileptic activity.

Past medical history was relevant for fetal hyperechogenic kidneys, with normal amniotic fluid volume and without any other sonographic abnormalities. Amniocentesis was performed for maternal age of 36 years and the karyotyping results were normal. After an uneventful elective cesarean section delivery at gestational week (GW 38) with a birth weight of 2,600 gr, borderline small hyperechogenic kidneys (4.2–4.4 cm long axis) were detected on ultrasound. The serum creatinine level was elevated: 0.98 mg/dL; normal range for age up to 0.8 mg/dL (25). Normalization of serum creatinine was observed by ages 1.5 and 18 months (0.4 and 0.3 mg/dL, respectively), and complete resolution of parenchymal hyperechogenicity with normal kidney growth was demonstrated on ultrasound at the age of 24 months. Figure 1A-1C displays the gradual sonographic normalization of kidney appearance.

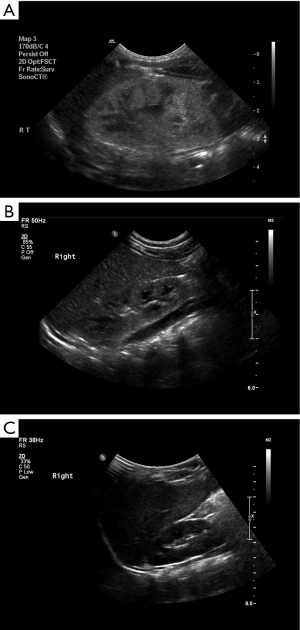

Figure 1 Patient 1: gradual normalization of renal parenchymal hyperechogenicity on ultrasound performed at ages: (A) 1 month, (B) 5 months and (C) 1.5 years.

This patient’s family history was positive for the mother’s 2 non-recurrent seizure episodes at age 22 years, epilepsy diagnosed in one of her cousins, and autistic spectrum disorder (ASD) in another cousin. There was no known familial kidney disease. Antiepileptic therapy instituted for recurrent focal seizures and myoclonic jerks together with magnesium supplement achieved complete seizure control. CMA performed for evaluation of hypomagnesemia revealed the typical 17q12 [34,815,551-36,275,773] deletion of ~1.46 Mb encompassing the HNFIB gene.

Currently, at 6 years of age, the child is in excellent general condition and is developing normally although she is overweight [body mass index (BMI) >95th percentile for age]. Her blood pressure is normal as is her renal function: the last serum creatinine (enzymatic) level was 0.34 mg%-eGFR =180 mL/min (Schwartz formula) (25), with borderline-to-low serum magnesium (1.6–1.8 mg%) on daily oral magnesium supplement. Serum uric acid, cholesterol and PTH levels were slightly elevated: 5.8 mg%, 230 mg% and 76 pg/mL (upper normal range: 5.5 mg%,199 mg% and 66 pg/mL, respectively). Normal-size kidneys: 8.1–8.4 cm length (24) with normal parenchymal echogenicity were demonstrated on ultrasound.

Patient 2

Patient 2 was the fetus of a 34-year-old primipara woman who was referred to pediatric nephrology consultation for fetal bilateral hyperechogenic low-normal-size kidneys (10–25th percentile length) and normal amniotic fluid volume, without any other abnormal findings on fetal ultrasound at GW 32. A fetal magnetic resonance imaging (MRI) study revealed focal cystic changes in a small left kidney (32.8 mm length, 5th percentile) and a bilateral irregular kidney contour with a hyperintense rim. The 30-year-old father reported diabetes onset at age 18 years, and his renal ultrasound performed upon our request revealed borderline small kidneys that measured 10 cm in length (his height was 178 cm), with normal renal function.

Amniocentesis (at GW 32) had revealed a normal male karyotype, but CMA analysis demonstrated a ~1.5 Mb deletion at 17q12 chromosome [34,822,465-36,410,720] encompassing the HNF1B gene. The father was found to harbor a similar 17q12 deletion. Pregnancy was terminated on parental request because of the possibility of renal and severe neurodevelopmental outcome consequent to the genetic diagnosis. The parents declined a post-mortem examination of the aborted fetus.

Patient 3

Patient 3 was a full-term (GW 41) normal male baby, birth weight 3,100 gr, who was born after a normal pregnancy. Bilateral enlarged (75–90th percentile long axis) hyperechogenic kidneys and normal/slightly increased amniotic fluid volume had been detected at the beginning of the second trimester. No extrarenal abnormalities were found. The family history was negative for cystic kidney disease, and the parental ultrasound performed on the nephrology consultant’s request was normal. The parents declined amniocentesis. A fetal MRI at GW 32 confirmed enlarged kidneys: 49–51 mm length (>97th percentile) (4) with bilateral cystic changes and normal amniotic fluid volume. The post-delivery physical examination was normal (including blood pressure), without dysmorphic features or respiratory distress. A neonatal renal ultrasound confirmed large hyperechogenic kidneys (5–5.5 cm long axis) (23), with small (up to 4 mm) cortical cysts and mild right hydronephrosis [anteroposterior renal pelvic diameter (APRPD) 9–10 mm]. The initially elevated serum creatinine of 1 mg% (normal 0.8 mg%) (25) dropped to the normal range for age (0.3 mg%) by age 1.5 months. Molecular analysis at age 2 years (delayed since birth by parental choice) revealed a 1.38 Mb deletion at 17q12 [34,815,551–36,195,082] encompassing the HNF1B gene. The parents declined further genetic tests for themselves or their other children.

The first febrile Enterococcus faecalis urinary tract infection (UTI) was diagnosed at the age of 3.5 years. Bilateral hydroureteronephrosis and incomplete bladder emptying were found on ultrasound, and subsequent voiding cystourethrography showed bilateral moderate-to-severe vesicoureteral reflux (grades 3 and 4 on the left and right, respectively), with 2 bladder diverticula and normal urethra. Bilateral ureteral reimplantation and resection of the bladder diverticula were performed, with no recurrent UTI.

The child’s physical and neurocognitive development are currently normal at age 6 years. He is slightly overweight (BMI >85th percentile for age), and he has normal blood pressure. His kidney function is normal (eGFR 134 mL/min), with depressed serum magnesium (1.6 mg%). Several episodes of elevated fasting serum glucose (108 mg%) were recorded with complete normalization on follow-up. An abdominal ultrasound showed persistently large kidneys (>95th percentile length for age) (24), with multiple small cysts but no cystic involvement in any other abdominal organs.

Patients 4 and 5

Patients 4 and 5 were discordant monochorionic female twins whose birth weights were 1,680 and 2,070 gr, respectively. They were born by cesarean section at GW 34.5 due to preterm labor. During pregnancy, bilateral hyperechogenic kidneys were suspected on fetal ultrasound, more apparent in the smaller twin. A fetal MRI at GW 32 showed that the smaller twin had a moderately hydronephrotic (APRPD =11 mm) normal-size right kidney (50th percentile for GW), with thinned (2–3 mm width) renal parenchyma and abnormal signal and a normal-texture small left kidney (3rd percentile for GW) (4). The size of the larger twin’s kidneys was normal (25th percentile for GW) and they had a slightly abnormal parenchymal signal, although less pronounced than those of her sister. The amniotic fluid volume was normal for both twins. There was no history of familial kidney disease, and both parents had normal findings on their kidney ultrasound studies. Amniocentesis was not performed. The post-delivery physical examination, including blood pressure, was normal for both twins. Kidney ultrasonography at age nine days revealed bilateral hyperechogenic kidney lengths of 44–45 (normal) and 34–38 mm (small) in the larger and smaller twins, respectively. Slightly elevated serum creatinine levels at age 2 days (1.1 and 1.09 mg%, respectively), decreased to the upper normal range (0.64–0.76 mg%) at discharge at age 19 days (24). The pediatric nephrology follow-up that continued for the ensuing 36 months revealed normal physical growth of both twins: 50th and 85th height percentile for corrected age, with normal blood pressure, renal function (eGFR 145 mL/min Schwarz formula) (25), serum creatinine levels (0.35–0.37 mg%), and urinalysis. Liver enzymes were slightly elevated: ALT =45–68 IU/L (normal range up to 35 IU/L) and GGT=114 IU/L (normal range up to 37 IU/L). Kidney hyperechogenicity as demonstrated on ultrasound resolved completely by age 3 years, and kidney size was within the lower normal range (62–68 mm length) for both twins (24).

By the age of 2 years, neurodevelopmental assessment of both twins showed global severe developmental delay (mental developmental index =52 and 49, for the larger and smaller twin, respectively), and they both met the criteria for autism spectrum disorder according to DSM-V. On molecular analysis performed in the clinical context CMA detected a 17q12 [34,816,551–36,383,538] deletion of 1.57 Mb encompassing the gene HNF1B, and a 1q43 deletion of 58 Kb including the RYR2 gene. No 17q12 microdeletion was reported on the parents’ CMA, while a 1q43 deletion was detected and found to be maternally inherited.

Patient 6

Patient 6 was a 11.5-year-old girl who has been followed in the pediatric nephrology clinic since birth for suspected left MCDK on fetal ultrasound and neonatal elevated serum creatinine: 1.7 mg% (25). She was born at GW 38 with a birth weight of 3,100 gr. A fetal ultrasound had diagnosed left MCDK with a normal right kidney and normal amniotic fluid volume at GW 22. Amniocentesis had shown a normal female karyotype. Neonatal examination was normal (including blood pressure), with no dysmorphic features. A patent foramen ovale was found on an echocardiogram, and the brain ultrasound was normal. An abdominal ultrasound at this age was consistent with left MCDK and an enlarged right hyperechogenic kidney with small cortical cysts, the largest of which was 4 mm diameter. Serum creatinine normalized gradually by the age of 8 months (0.3 mg%) (25), while the right kidney hyperechogenicity subsided gradually to two residual upper pole cysts (7 mm maximal size) and complete resolution of the left MCDK by the age of 4.9 years. Interestingly, a DMSA renal scan at the age of 2 months showed a solitary functioning right kidney with homogenous isotope uptake. Figure 2A,2B shows normalization of the sonographic appearance of the right solitary functioning kidney.

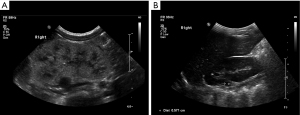

Figure 2 Patient 6: normalization of renal parenchymal hyperechogenicity on ultrasound between age (A) 1 month and (B) 4.9 years with residual small cyst in solitary functioning right kidney.

Currently, at age 11.5 years, the patient is a normal, well-developed youngster (height 157.5 cm =85th percentile) with normal blood pressure and normal kidney function: eGFR 151–147 mL/min (serum creatinine 0.53 mg%) with a low magnesium level (1.37 mg%) due to magnesuria, and a uric acid level in the upper normal range (5.8 mg%). The urinalysis findings were normal. A CMA analysis performed for evaluation of hypomagnesemia (which was difficult to control) and persistent solitary kidney cystic changes revealed a pathogenic mutation at the locus of the HNF1B gene consisting of a ~1.6 Mb deletion at 17q12 [34,822,465–36,404,555]. The girl’s parents have not yet completed the recommended CMA.

Discussion

The most common presentation of HNF1B-related disease consists of either fetal bilateral (sometimes asymmetrical) hyperechogenic kidneys with variable amniotic fluid volume or overt CAKUT with MCDK comprising 25% of these cases detected pre- or postnatally (10,12,13,15-21). The most intriguing and novel finding in our study is the unexpected postnatal complete sonographic resolution of renal parenchymal hyperechogenicity, without evolution to cystic changes among unsuspected prenatal cases. This contrasts with the inevitable cystic deterioration described by others (10,17,20). This normalization was observed within 24–57 months in 4 of our patients, with very limited local persistence of cystic changes in one of them. Moreover, normalization of initially abnormal renal function was even more rapid, having been observed within 2–8 months. As expected, the longest interval to normalization was monitored in the patient with the solitary functioning kidney. This observation contrasts with reports of a 23–61% rate of impaired renal function recovery in similar cases within 1 month to 14 years (10,12,13,15-17), and also with the predicted worse renal outcome of early presentation of HNF1B-associated kidney abnormalities (10). Importantly, we found no correlation between the persistent diffuse cystic changes observed since the fetal MRI in one patient with the completely normal renal function during 6 years of close follow-up (Patient 3). While no consistent genotype-phenotype correlation has been reported for either the renal or the extrarenal phenotype (13-15), the better renal function prognosis in our cohort with all patients harboring the same deletion type mutation might represent the counterpart of the worse outcome reported in one study for point mutation/truncating intragenic mutations (17). Our finding is also consistent with reports of a very low rate (12.8%) of progression to end-stage renal disease during childhood as well as thereafter (13,16,26).

We postulate that the cause underlying the spontaneous resolution of the initial abnormalities might be compensatory changes in the adjacent normal renal parenchyma. Similarly, the complete normalization of initially depressed renal function observed in our cohort is remarkable and supports this hypothesis. Larger prospective studies should be undertaken for better delineation of HNF1B mutation-associated renal prognosis.

Another novel finding among our patients is the coexistence of both types of HNF1B-associated kidney abnormalities, i.e., cystic kidneys and CAKUT, which presented sequentially in Patient 3. The great majority of HNF1B mutation cohorts, including the most recently reported ones, described the renal cystic/dysplastic changes as the most prominent imaging feature of this mutation. While HNF1B mutation is recognized as one of the most commonly identified genetic causes of CAKUT, the simultaneous occurrence of these two expressions of the same mutation was very rarely reported: specifically, once in a post-mortem study of aborted fetuses (18) and in two cases described in two recently reported cohorts of 67 (27) and 33 patients (28) carrying the mutation. It is critically important to pursue the diagnosis of possible CAKUT as suggested by evolving uromechanical abnormalities (hydronephrosis, hydroureter) on serial ultrasound examinations in the context of cystic kidneys due to HNF1B with the aim of preventing secondary kidney damage associated with UTI.

Neurodevelopmental involvement is one of the most feared extrarenal features of a HNF1B deletion. The twins of the current cohort were diagnosed with ASD, which reportedly occurs at a 9- to 18-fold higher rate in association with 17q12 microdeletion than in the general population (13-16,29-31). Increased prevalences of other psychiatric disorders, intellectual disability, and learning problems were also reported in association with the 17q12 microdeletion (13,14,29,32). Seizure disorder has only rarely been reported in 17q12 microdeletions (33). The rolandic-type seizures in our Patient 1, who is neurodevelopmentally intact, could have represented a mere coincidental finding in a family in which seizures are known to have affected the mother and a maternal aunt. However, the reported autism in the maternal aunt is intriguing, and we speculate that it might be another feature of an undetected HNF1B deletion.

Additional HNF1B-associated extrarenal features, such as hypomagnesemia, hyperuricemia, elevated liver enzymes, and abnormal parathyroid hormone levels, which have been reported in up to 44% of these cases (13,15,16,23), were also observed in our cohort. Worth emphasizing is the finding of hypomagnesemia with magnesuria, which was the sign that triggered genetic diagnosis in two of our patients (Patients 1 and 6). This often overlooked sign has a later onset in patients who carry the mutation and might reflect ongoing tubulointerstitial renal involvement (13,16). Also, the elevated BMI in two of our patients (Patients 1 and 3) and the upper normal range of fasting blood glucose in one of them (Patient 3) might suggest a predisposition for later-onset DM due to the pancreatic hypoplasia that is inherent to this syndrome (15,18).

Specific criteria have recently been defined for initiating a HNF1B mutation search in patients with CAKUT (2,21,26). The findings in our cohort highlight additional clinical and laboratory cues that should prompt a molecular diagnosis search for HNF1B mutations in those patients. These signs include a history of fetal hyperechogenic kidneys with complete postnatal resolution or fetal-onset cystic kidneys (possibly revealed by fetal MRI in cases of unclear sonographic findings) not congruent with the recognized pattern of ADPKD or ARPKD, or fetal diagnosis of MCDK with an abnormal/cystic contralateral kidney—all of these with normal renal function (possibly after an initial mild-moderate abnormality). A relevant family history of diabetes, gout, fertility problems, or autism should be sought along with asymptomatic CAKUT on parental kidney ultrasound. These clues along with the recognized 30–40% rate of inherited heterozygous HNF1B microdeletions (10,13-17,21) highlight the importance of molecular diagnosis, despite the slowly evolving phenotypic features and the intrafamilial variability, as exemplified by the paternal phenotype of our Patient 2 (the aborted fetus). On the other hand, the detection of a 17q12 deletion in children evaluated for developmental delay or ASD should prompt a thorough nephrological and metabolic evaluation as well as continued follow-up until adulthood and thereafter.

The main limitation of our study is the very small size of our cohort.

In conclusion, our series adds several novel features to the highly variable, multifaceted, and perpetually evolving spectrum of HNF1B mutations. Early molecular diagnosis will dictate long-term multidisciplinary follow-up in these patients for best management of any associated renal and multisystemic HNF1B mutation features.
