Surgical repair of persistent fifth aortic arch coarctation and interrupted fourth aortic arch without cardiopulmonary bypass: a case report
Introduction
Persistent fifth aortic arch (PFAA) is a very rare congenital cardiovascular defect, which is often associated with other cardiovascular anomalies such as patent ductus arteriosus (PDA), interrupted aortic arch (IAA), pulmonary atresia, tetralogy of Fallot, and transposition of the great vessels. PFAA was first described by Van Praagh in an autopsy specimen in 1969 (1). PFAA is an abnormal vessel, arising from the ascending aorta proximal to the origin of the brachiocephalic artery, and then terminating in the dorsal aorta or pulmonary artery via the patent arterial duct, which was defined comprehensively by Gupta (2). We report the case of an infant diagnosed with PFAA, IAA and patent arterial duct. We present the following case in accordance with the CARE reporting checklist (available at https://tp.amegroups.com/article/view/10.21037/tp-21-350/rc).
Case presentation
A 50-day-old male infant who weighed 4.7 kg was admitted to our hospital because of suffering from shortness of breath for more than 10 days. This male infant was the first child from a nonconsanguineous couple without family history. Although his vital signs were stable, a grade 1/6 ejection systolic murmur was observed at the 2nd or 3rd left parasternal intercostal space without accentuation pulmonary components of the second heart sound. Furthermore, his blood pressures in upper limbs (left 103/56 mmHg, right 101/54 mmHg) were significantly higher than those in lower limbs (left 60/45 mmHg, right 59/46 mmHg). Electrocardiogram displayed sinus rhythm and Q-T intervals prolonged. IAA (type A), PDA, PFAA with a coarctation, and the left vertebral artery (LVA) arising behind the fourth AA were observed in echocardiography and computed tomography angiography (CTA) (Figure 1A).

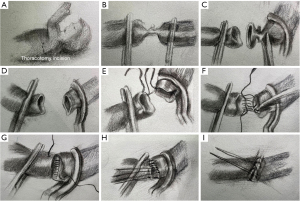

Surgical repair was performed through the left anterolateral fourth intercostal thoracotomy incision in the right lateral position. The arterial duct was 3 mm in diameter, which was ligated and then disconnected (Figure 1B). The PFAA and descending aorta were cross-clamped. Then the narrowest part of the PFAA was excised which was about 5 mm long (Figure 1C), and then an end-to-end anastomosis was conducted. As shown in Figure 2, the diagram can display the procedure of the surgical repair. The anastomotic aorta was 8 mm in diameter, with blood pressure at 90/49 mmHg in upper right limb and 75/49 mmHg in lower right limb. Echocardiography showed that the cardiac function was normal and the blood flow in anastomotic aorta was smooth after the surgery. The patient resulted in good recovery and was discharged on day 7th post operation. A stenosis was identified by CTA at 10 months after the resection (Figure 3A). Eighteen months after the resection, the stenosis still remained (Figure 3B), and then the balloon dilation procedure through cardiac catheterization was conducted. Pre-dilation invasive blood pressure difference was 23 mmHg between anterior stenosis site (93/66 mmHg) and posterior stenosis site (70/56 mmHg), but post-dilation invasive blood pressure difference was 4 mmHg. In the latest follow-up visit 2 years after the balloon dilation, the echocardiography revealed the diameter of the anastomotic part was 6.5 mm, almost the same diameter as aortic arch. The blood pressure difference between anterior anastomotic site and posterior anastomotic site was 16 mmHg, with blood pressure at 100/70 mmHg in upper right limb and 105/72 mmHg in lower right limb. CTA at the postoperative follow-up showed a good recovery with normal cardiac function 3 years (Figure 3C) and 4 years (Figure 3D) after the resection.
All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient’s parents or legal guardians for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.
Discussion
PFAA is a very rare congenital cardiovascular anomaly (3). It is an extrapericardial vessel arising from the ascending aorta, and then connecting to the systemic or pulmonary circulation. PFAA is most commonly classified into three different types according to its different aberrant vascular connections, described by Weinberg (4). PFAA can be subdivided into two major types: systemic-to-systemic (type A and B) and systemic-to-pulmonary (type C) connection. There is a double-lumen aortic arch in type A PFAA. The fourth AA is above the fifth AA, running parallel to each other, and connecting the ascending and descending aorta. In type B PFAA, the fourth AA is interrupted or atretic, only the fifth AA connects the ascending and descending aorta. The fourth AA is interrupted, and the fifth AA arises from the origin of the brachiocephalic artery and connects to the pulmonary artery, which is described as type C PFAA. According to the classification, our case was classified as type B PFAA with coarctation.
Cardiac MRI and CTA are the reference standards for the diagnosis of PFAA. With the development of the three-dimensional angiography imaging, the multi-slice spiral CTA (MSCTA) which can display the PFAA clearly and directly is widely used in recent years. Several surgical procedures have been used to repair the coarctation of PFAA including patch enlargement of the coarctation, using tube grafts and end-to-end anastomosis between the descending aorta and the fifth AA (5). The fourth AA in our case was interrupted. Four vessels arose directly from the ascending aorta. And the fifth AA was well developed. Therefore, we resected the coarctation of the fifth AA, and then conducted an end-to-end anastomosis. There was no intra-cardiac malformation in this infant, so we performed the surgery through the left anterolateral fourth intercostal thoracotomy incision in the right lateral position without cardiopulmonary bypass. In this way, it can provide clear operative field, and the infant can also benefit from less trauma, less bleeding and better appearance. The infant recovered smoothly after this simple and short-time operation. Despite a stenosis was observed at anastomotic part at 10 months after the operation. The infant recovered well after once balloon dilation procedure, and no occurrence of the stenosis was observed in the followed 2 years. Through our surgical experience, we believe that this surgical procedure is more suitable for such patient whose fifth AA well developed. And this child’s patients appreciated the doctors very much for the appropriate treatments of their child.
